J30J Series Connector Male Plug Micro D Solder Contact with 9,15, 21, 25, 31, 37, 51, 66, 74,100 Contacts

Product Description:

J30J series products equate to American MDM series, and the number of contacts including : 9, 15, 21, 25, 31, 37, 51, 66, 100.

Using twisted wire elastic pins (twist pins) with high contact density, suitable for wire core cross-sectional area of 0.1mm² to 0.15mm².

Outer Conductor: Aluminum Alloy, Nickle Plating

Center Conductor: Copper Alloy, Gold Plating

Contact Spacing: 0.05'' / 1.27mm

Elite Electronics mainly have three type of Micro D Connectors used for Crimping contact,Soldering contact,Print Board.

Technical Parameters:

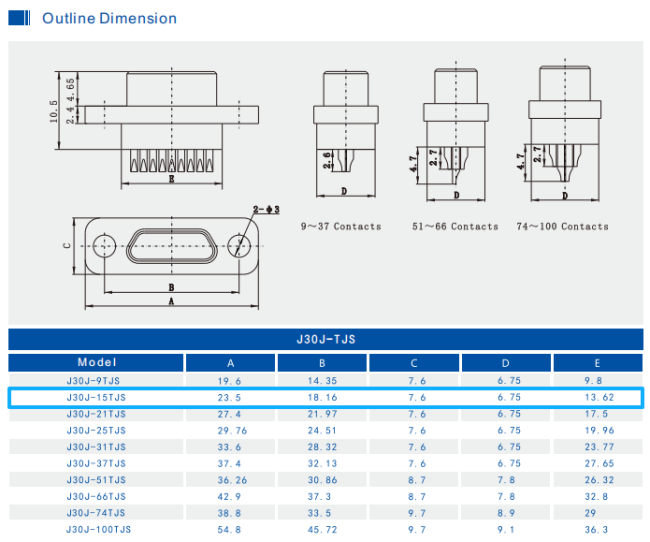

Outline Dimension of Male Plug Micro D Connector with Soldering Cup: (Unit mm)

Applications:

The ELT J30J Series Connector, is a versatile and reliable product suitable for a wide range of applications. With its high-quality design and construction, this connector is ideal for various occasions and scenarios.

It is widely used in aerospace, aviation, navigationk satellite, radar, communication, AI design, electronics.

Customization:

J30J Series Connector Customization Services

Please contact us directly in order for us to arrange the evaluation by our Technical Dept.

Packing and Shipping:

Packaging and Shipping for J30J Series Connector/ Micro D Connectors:

The J30J Series Connector is carefully packaged to ensure secure delivery. Each connector is placed in a protective pacalge and then enclosed in a sturdy cardboard box to prevent any damage during shipping.

For shipping, we use trusted carriers to deliver your order safely and on time. Your J30J Series Connector will be shipped with tracking information provided so you can monitor its journey to your doorstep.
