Straight SMA Female To Mini SMP (SMPM, SSMP) Female Adapters Up To 18 GHz for Harsh Environments

Product Description:

The SMA to SMPM (Mini SMP, SMPM) Adapter is meticulously designed to establish a flawless connection between SMA and SMPM connectors. This adapter is indispensable in scenarios where seamless integration between SMA interface devices and SMPM interface devices is required. It finds extensive application in wireless communication, test equipment, and RF instruments, ensuring reliable and efficient interface conversion.

Elite Electronic provides a comprehensive range of SMA to SMPM adapters, including flange mount, bulkhead mount, straight, and right angle configurations. This variety guarantees optimal compatibility and adaptability, catering to a wide spectrum of technical needs and operational environments.

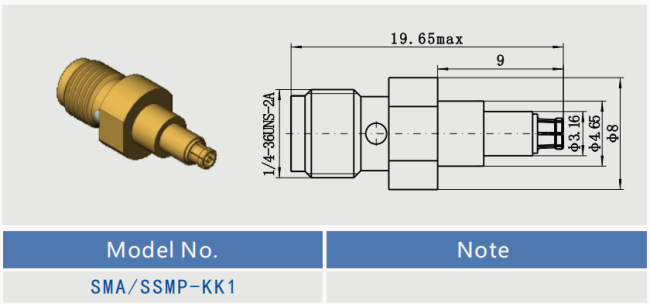

Outline Dimension of Straight SMA to SSMP ( Mini SMP, SMPM) Female to Female Adapters SMA/SSMP-KK1 :

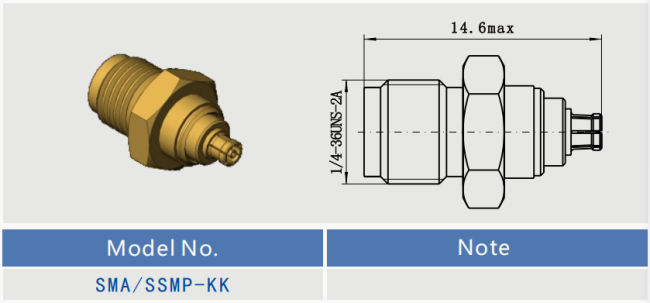

Outline Dimension of Straight SMA Female to SSMP ( Mini SMP, SMPM) Female Adapters SMA/SSMP-KK:

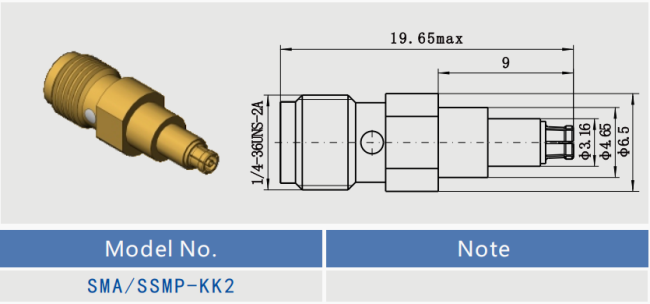

Outline Dimension of Straight SMA Jack to SSMP ( Mini SMP, SMPM) Jack Adapters SMA/SSMP-KK2:

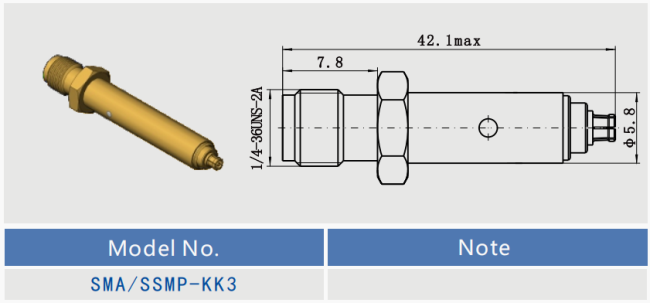

Outline Dimension of Straight SMA to SSMP ( Mini SMP, SMPM) Jack to Jack Adapters SMA/SSMP-KK3:

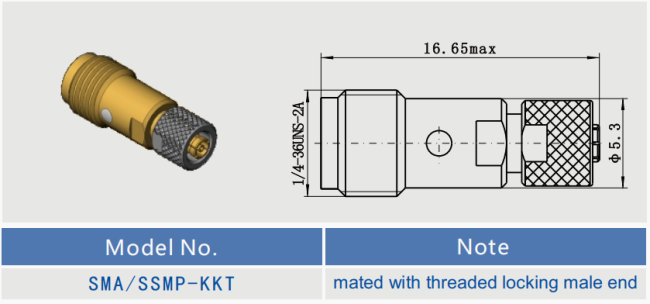

Outline Dimension of Straight SMA to SSMP ( Mini SMP, SMPM) Jack to Jack Adapters SMA/SSMP-KKT:

This model mated with male connectors with threaded locking structure.

Note: If you would like to customize the different length of SMA to SSMP ( Mini SMP, SMPM) Adapters. please contact us freely.

Applications:

Xi'an Elite Electronic is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry for harsh environments.

Packing and Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5*W18.5*H14cm

Shipping Method: Standard Shipping

Shipping Time: 5-7 business days for stocked connectors and adapters
