2 Holes Flange Mount SMA Female/Jack To SMP Female / Jack Adapters Up To 18GHz

Product Description:

The SMA to SMP Adapter is engineered to seamlessly connect SMA connectors with SMP connectors. This adapter is essential for applications where devices with SMA interfaces need to interface with SMP-equipped devices. It is extensively used in fields such as wireless communication, test equipment, and RF instruments, facilitating efficient conversion between different interfaces. Elite Electronic offers a variety of SMA to SMP adapters, including 2 holes /4 holes flange mount, bulkhead mount, straight, and right angle models, ensuring compatibility and flexibility for diverse operational requirements.

SMP Connectors is an ultra-small push-in RF coaxial connector, which has the characters of small size, light weight, excellent vabration-proof performance, and wide working frequency bandwidth, etc. Operating frequency up to 30GHz (Elite Electronic's high performance SMP connector can reach 40GHz), and the plug has three interface forms- full detent, limited detent and smooth bore(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of board-to board system. It’s suitable for the install situation with the requirement of high reliability modular intensive.

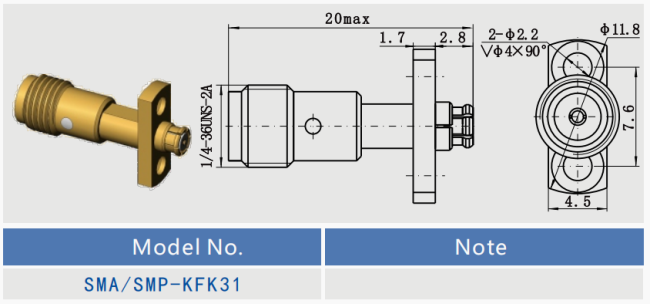

Outline Dimension of SMA to SMP Female to Female 2 Hole Flange Mount Adapters SMA/SMP-KFK31:

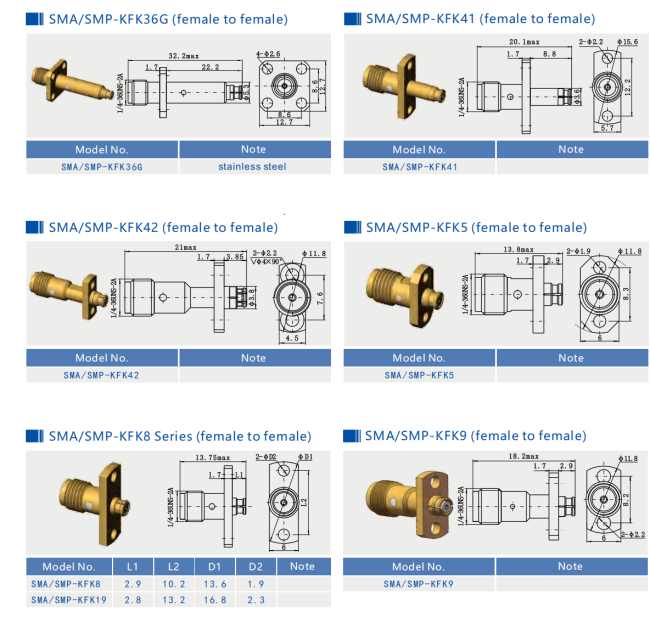

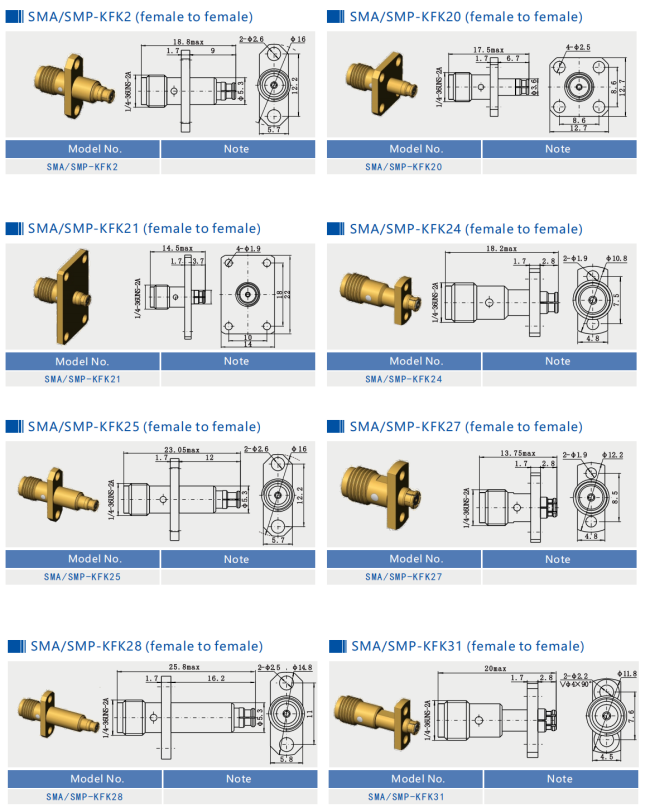

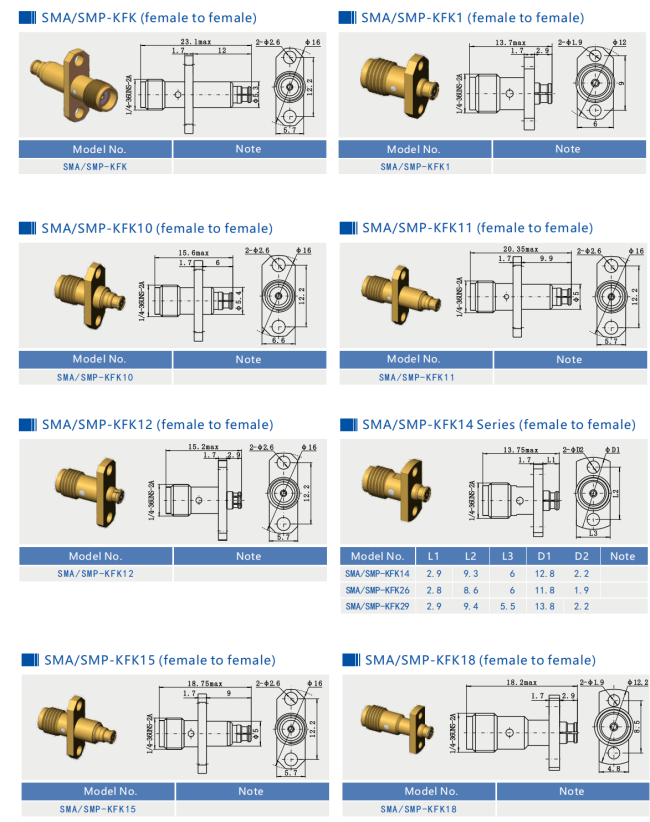

Other Dimension of SMA to SMP Jack to Jack Flange Mount Adapters SMA/SMP-KFK Series:

Please contact us freely if you are interesting any models.

Applications:

Xi'an Elite Electronic is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.

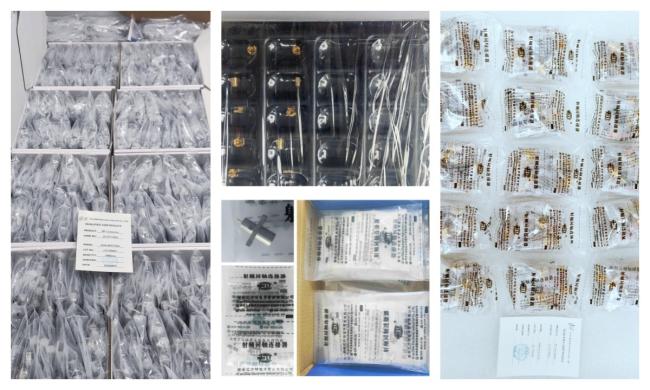

Packing & Shipping:

Packaging:

The SMA to SMP female to female flange mount Adapters is carefully packaged in a secure box to ensure safe delivery. Each connector is wrapped in protective material to prevent any damage during transit.

Shipping:

We offer fast and reliable shipping options for the SMA to SMP jack to jack flange mount Adapters. Orders are processed promptly and shipped with a reputable carrier to your specified address. You can track your package through our online portal to monitor its journey to you.
