Hermeticlly Sealed SMP Smooth Bore Male Push On Coaxial Connector for Board to Board Connect

Product Description:

SMP series connectors, blind-mate RF coaxial connectors, provide an ideal solution for modular dense installation applications. Characterized by their small size, light weight, excellent vibration-proof performance, and wide frequency band usage, SMP connectors can operate within the range of DC~40GHz.

They feature three interface forms: full detent, limited detent, and smooth bore (including with braking), which accommodate the required axial or radial movement for blind mating in board-to-board systems when used in pairs. Suitable for installation situations demanding high reliability and modular intensity, SMP connectors are widely used in dense assembly, matrix antennas, satellites, radar, communications, and other applications.

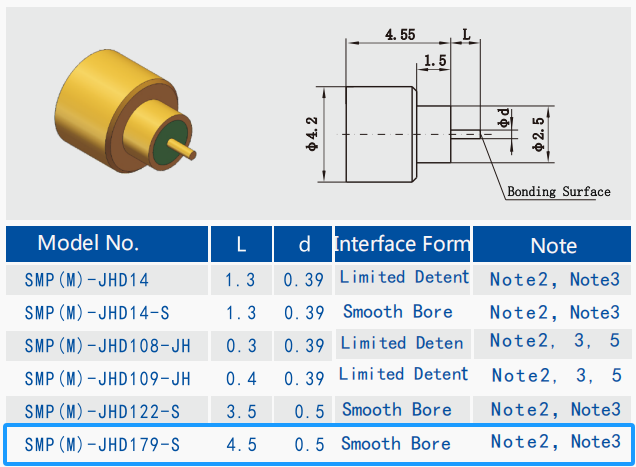

Outline Dimension of Hermeticlly Sealed SMP Smooth Bore Male Connector for Board to Board Connection:

 Note 2:  Engagement depth 2.79          Note 3 : Hermetic          Note 5:  Wire Bonding

Applications:

Product Application:

• High-Performance SMP Connectors for Telecommunications and Wireless Communication
• Precision 40 GHz SMP Connectors for Test and Measurement Applications
• The SMP Connector guarantees reliable data transmission for antennas, base stations, and wireless devices.
• Reliable SMP Series Connectors for Industrial Automation Systems

Packing & Shipping:

Packaging of Hermeticlly Sealed SMP:

- Each SMP RF connector is carefully packaged in a protective plastic case to prevent damage during transit.

- The packaging is designed to keep the connector safe and secure until it reaches its destination.

Shipping Information of Hermeticlly Sealed SMP:

- Within 5-7 working days after payment for stocked goods. The Express Tracking Number will be provided after shipment.
