2 Holes Flange Mount SMA Female/Jack To Mini SMP (SMPM, SSMP) Female / Jack Adapters Up To 18GHz

Product Description:

The SMA to SSMP( SMPM, Mini SMP) Adapter is engineered to seamlessly connect SMA connectors with SSMP (SMPM, Mini SMP) connectors. This adapter is essential for applications where devices with SMA interfaces need to interface with SSMP( SMPM, Mini SMP) -equipped devices. It is extensively used in fields such as wireless communication, test equipment, and RF instruments, facilitating efficient conversion between different interfaces. Elite Electronic offers a variety of SMA to SMP ( SMPM, Mini SMP) adapters, including 2 holes /4 holes flange mount, bulkhead mount, straight, and right angle models, ensuring compatibility and flexibility for diverse operational requirements.

SSMP RF Coaxial Connectors are ultra-miniature push-on RF coaxial connectors characterized by the small size (smaller than SMP), light weight, and wide operating frequency range. They are used in pairs for board to board connections, suitable for modular dense mounting. The plug has two interface forms: full detent and smooth bore.

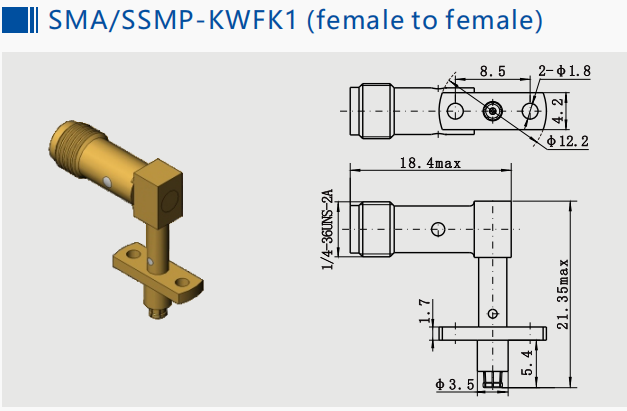

Outline Dimension of 2 Holes Flange Mount SMA Female To Mini SMP (SMPM, SSMP) Female Adapters SMA/SSMP-KWFK1 :

SSMP end mated with SSMP male connectors with (interface≤1.85mm)

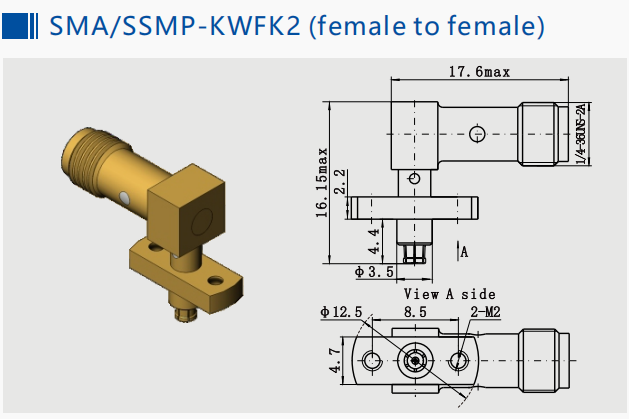

Outline Dimension of 2 Holes Flange Mount SMA Jack To Mini SMP (SMPM, SSMP) Jack Adapters SMA/SSMP-KWFK2 :

SSMP end mated with SSMP male connectors with (interface≤1.85mm)

Applications:

Xi'an Elite Electronic is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.

Packing and Shipping:

Packaging:

The SMA to SSMP( SMPM, Mini SMP) Adapter female to female 2 holes flange mount Adapters is carefully packaged in a sturdy box to ensure safe transportation and storage. The connector is secured in place with protective padding to prevent damage during transit.

Shipping:

Orders for the SMA to SSMP( SMPM, Mini SMP) Adapter female to female 2 hole flange mount Adapters are processed and shipped once readay. We use reliable shipping carriers to deliver your order promptly and securely. You will receive a tracking number to monitor the status of your shipment.
