2 Holes Flange Mount SMA Female / Jack To SSMA Female / Jack Adapters Up To 18GHz

Product Description:

The SMA to SSMA Adapter is designed to effortlessly connect SMA connectors with SSMA connectors. This adapter is crucial for applications where devices with SMA interfaces need to interface with SSMA-equipped devices. It is widely used in areas such as wireless communication, test equipment, and RF instruments, enabling efficient conversion between different interfaces. Elite Electronic offers a variety of SMA to SSMA adapters, including 2-hole and 4-hole flange mount, bulkhead mount, straight, and right angle models, ensuring compatibility and flexibility for diverse operational requirements.

SSMA RF Coaxial Connectors are ultra-miniature push-on RF coaxial connectors characterized by their small size (smaller than SMA), light weight, and wide operating frequency range. They are used in pairs for board-to-board connections, suitable for modular dense mounting.

SMA RF Coaxial Connectors are small, high-frequency coaxial connectors. They offer advantages such as compact size, wide frequency band, superior mechanical and electrical performance, and high reliability. This series of high-performance connectors developed by Elite Electronic can reach frequencies up to 18 GHz. SMA connectors are the most widely used RF coaxial connectors and are extensively utilized in microwave communication and microwave measurement equipment among other fields.

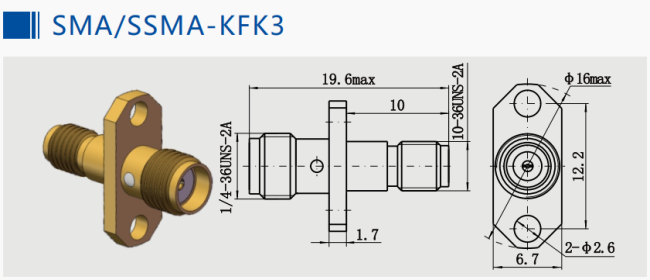

Outline Dimension of 2 Holes Flange Mount SMA Female To SSMA Female Adapters : SMA/SSMA-KFK3

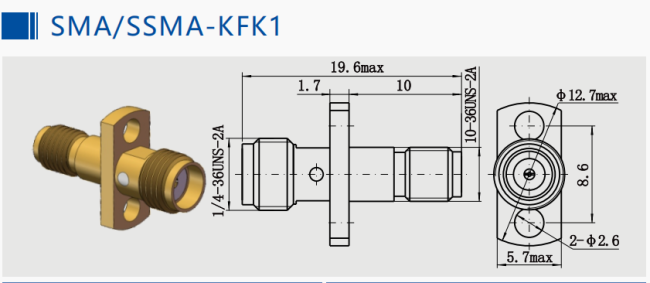

Outline Dimension of 2 Holes Flange Mount SMA To SSMA  Jack to Jack Adapters : SMA/SSMA-KFK1

Applications:

Xi'an Elite Electronic is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.

Packing and Shipping:

Packaging:

The SMA to SSMA 2 hole flange mount female to female Adapters is carefully packaged in a sturdy cardboard box to ensure its safe delivery. The connector is wrapped in protective bubble wrap to prevent any damage during transit.

Shipping:

Orders for the The SMA female to SSMA female 2 hole flange mount Adapter processed and shipped once readay. We offer standard shipping options with tracking information provided.
