Female Bulkhead BNC RA Coaxial Connector for 4 Leg PCB Through Hole Soldering up to 4 GHz in Commercial Environments
Price:
Competitive
MOQ:
In Stock
Delivery Time:
5-7 working days after payment
Brand:
ELT
Product Description
Copper Alloy with Nickel Plating BNC RA Female Bulkhead Connectors 4 Leg through hole Soldering
- Product Introduction
The BNC series connector is a bayonet-style RF coaxial connector. It features quick connections and reliable contact, and is mostly used in RF systems with frequencies below 4GHz. It is widely used in network systems, instrumentation, and computer interconnection fields.
- Specification of : Commercial Grade Right Angle BNC female Bulkhead up to 11GHz for 4 leg through hole PCB soldering
| Product Model | BNC-KYWHD | ||
| Technical | Materials & Finish | ||
| Impedance | 50Ω | Center Conductor | Sn-P bronze, Gold plating |
| DWV | 1500V | Outer Conductor | Copper Alloy, Nickel plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric |
|
| Temperature |
Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ |
||
| Frequency Range | DC~4GHz | ||

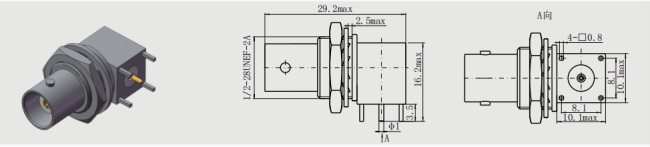

- Outline Drawing of Right Angle BNC female Bulkhead Connectors:
- Application of RA BNC Jack Bulkhead Connectors:
* Instrumentation
* Automotive
* Satcom
* Computer/LANs
* Telecommunications
* Avionics, radars
* Telecommunication systems
* Navigation systems
* Research centres
* Satellite communications
- Package of RA BNC female/Jack Bulkhead Connectors:
