Stainless Steel 2 Hole Flange Mount SSMA Female / Jack RF Coaxial Microstrip Connector Up To 18GHz with Metal Convex Surface

Product Description:

SSMA is a miniaturized SMA RF coaxial connector.

The SSMA series RF coaxial connectors are miniaturized products based on the SMA interface standard. Their size is approximately 70% of traditional SMA connectors and they feature wide frequency bands, excellent mechanical and electrical performance, and high reliability. These connectors use a threaded standard (10-36UNF-2) with a characteristic impedance of 50Ω and can operate at frequencies up to 30GHz. They are suitable for high-precision microwave signal transmission requirements. The SSMA series products are widely used in microwave communication, measurement equipment, aerospace, radar and other fields.

Interface Dimenstion of SSMA RF Coax Connectors

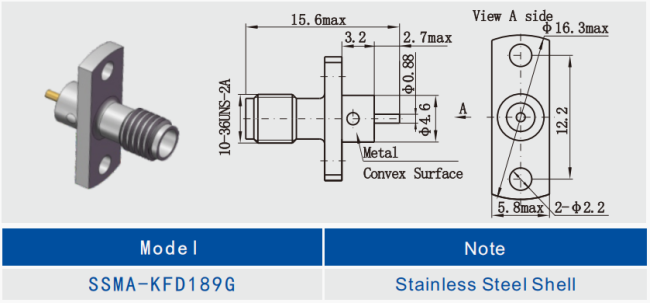

Outline Dimension of 2 hole Flange Mount Stainless Steel SSMA Female RF Coaxial Microstrip Connectors : SSMA-KFD189G (Unit: mm)

Similar Model:

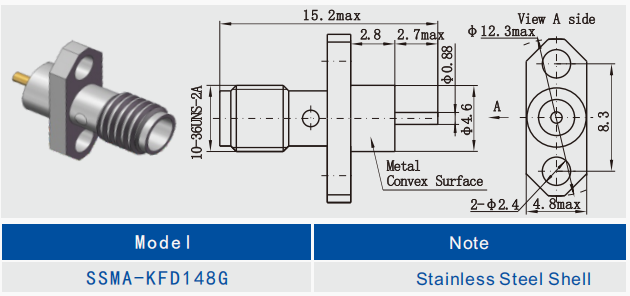

2 hole Flange Mount Stainless Steel Housing SSMA Jack RF Coax Microstrip Connectors : SSMA-KFD148G (Unit: mm)

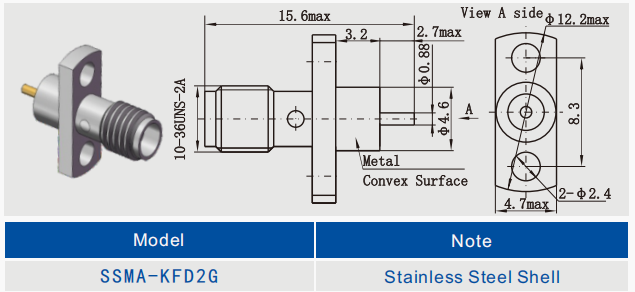

2 Hole Flange Mount Stainless Steel Shell SSMA Female RF Coax Microstrip Connectors : SSMA-KFD2G (Unit: mm)

Applications:

Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.

Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

Packing and Shipping:

 Packaging:

The Stainless Steel 2 Hole Flange Mount SSMA Female RF Coaxial Connector is carefully packaged in a sturdy cardboard box to ensure its protection during transit. The connector is secured in place with foam padding to prevent any damage from occurring during shipping.

Shipping:

We ship the Stainless Steel Flange Mount SSMA Connector using a reliable courier service to ensure safe and prompt delivery to our customers. The connector is packed securely to prevent any mishandling during transportation. Customers will get a tracking NO. after the shipment.
