2 Hole Flange Mount Stainless Steel / Copper Alloy SSMA /Mini SMA Jack / Female Socket RF Coax Microstrip Connector Up To 18GHz With Insulation Convex Surface

Product Description:

SSMA Series RF coaxial connector is a miniaturized product of SMA connector.

The SSMA series RF coaxial connectors are compact versions of the SMA interface standard. They are approximately 70% the size of traditional SMA connectors. It is characterized by small volume, wide frequency band, superior mechanical and electrical performance and high reliability. These SSMA connectors utilize a threaded connection (10-36UNF-2) with a characteristic impedance of 50Ω and can operate at frequencies up to 30GHz. Ideal for high-precision microwave signal transmission, SSMA connectors are extensively used in microwave communication, measurement equipment, aerospace, radar, and eletctronics fields.

SSMA RF Coax Connectors' Interface Dimenstion:

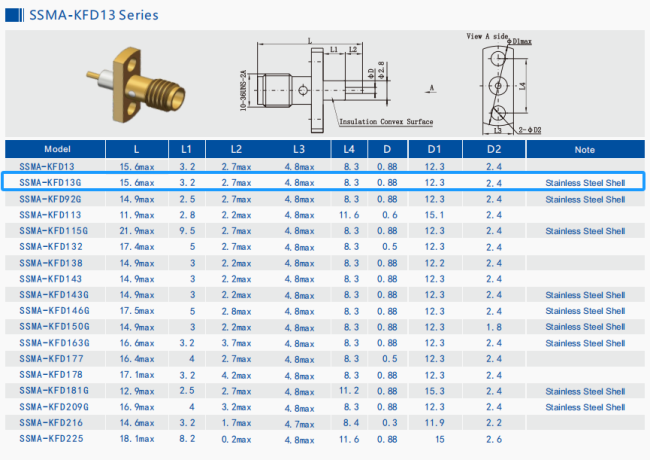

Outline Dimension of 2 Hole Flange Mount Stainless Steel SSMA Female RF Coaxial Microstrip Connectors : SSMA-KFD13G (Unit: mm)

Regarding this series, we have some simiar model with copper alloy shell, stainless steel housing, the model with different whole length, different length of Insulation Convex Surface and different length of pins and OD 0.88mm, 0.6mm,0.5mm, 0.3mm to meet the clients varity needs.

2 Hole Flange Mount Stainless Steel SSMA Female RF Coax Connectors with Insulation Convex Surface : SSMA-KFD13G

Other Similar Model:

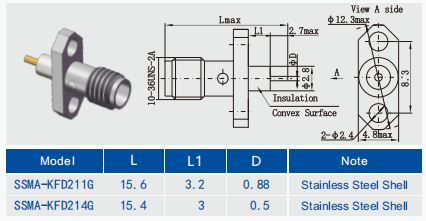

2 Hole Flange Mount Stainless Steel SSMA Jack RF Coax Connectors with Insulation Convex Surface  : SSMA-KFD211G/214G

Applications:

Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.

Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

Packing and Shipping:

 Packaging:

The Stainless Steel 2 Hole Flange Mount SSMA Female RF Coaxial Connector is carefully packaged in carton to ensure its protection during transit.

Shipping:

We ship the Stainless Steel Flange Mount SSMA Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
