Stainless Steel SMA Female Jack To SMP Female Jack Bulkhead Mount RF Coaxial Adapter Frequency Up To 18 GHz
Product Description:
SMA RF Coaxial Connector
The SMA RF coaxial connector is a compact, high-frequency connector known for its small size, wide frequency band, superior mechanical and electrical performance, and high reliability. Developed by Elite Electronic, this series of high-performance connectors can operate up to 18GHz. It is the most widely used RF coaxial connector, commonly employed in microwave communication, microwave measurement equipment, and various other fields.
SMP RF Coaxial Connector
The SMP RF coaxial connector is a sub-miniature push-on connector characterized by its small size, light weight, excellent vibration resistance, and wide working broadband. It operates up to 30GHz, with high-performance versions reaching 40GHz. The SMP plug comes in three interface forms: full detent, limited detent, and smooth bore (including with catcher's mitt). These various interface forms accommodate the required axial or radial movement for blind mating in board-to-board systems. It is ideal for installation situations demanding high reliability and modular intensity.

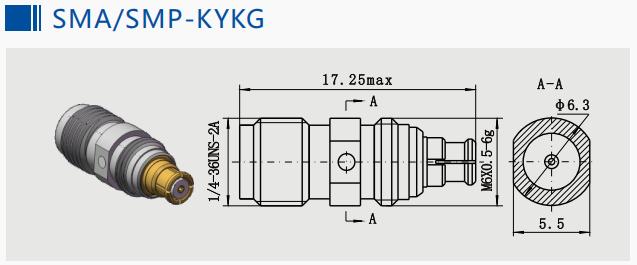

Outline Dimension of Stainless Steel SMA to SMP jack to jack bulkhead mount Adapters SMA/SMP-KYKG

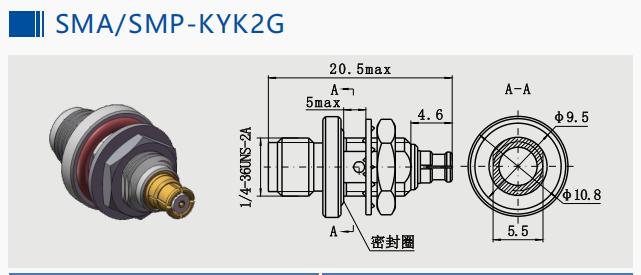

Outline Dimension of Stainless Steel SMA to SMP female to female bulkhead mount Adapters SMA/SMP-KYK2G

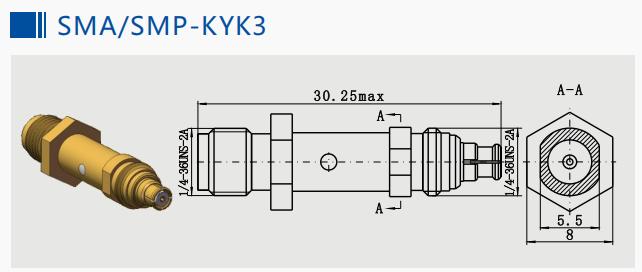

Outline Dimension of Copper Alloy SMA to SMP jack to jack Adapters SMA/SMP-KYK3 :

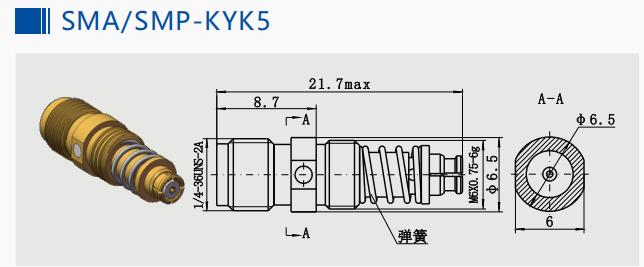

Outline Dimension of Copper Alloy SMA to SMP jack to jack Adapters SMA/SMP-KYK5 :
Note : Axial floating, floating range :1mm, minimum compressible to 20.7mm.
Applications:
SMA to SMP adapters are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.
Packing & Shipping:

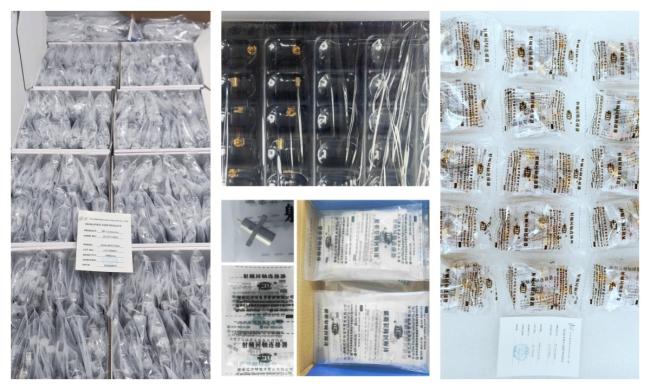

- Packaging:
The SMA female to SMP male adapters is carefully packaged in a carton to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.![]()
Shipping:
We offer fast and reliable shipping for the SMA jack to SMP jack adapters. We will ship the stocked adapters within 5-7 business days. After shipping, you will receive a tracking No of your shipment.
