High Frequency N Female Flange Mount RF Connector 50Ω 11GHz CXN3449 With Nickel Plated Outer Conductor
Price:
Depending on the quantity
MOQ:
In Stock
Delivery Time:
5-7 working days for stocked quantity
Brand:
ELT
Product Description
Stainless Steel N Type Male Plug RF Coaxial Connector
High-frequency connector with superior performance up to 11GHz
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | N Female Flange Mount Connector |
| Model | N-J417G |
| Frequency Range | 0.3MHz-11GHz |
| Impedance | 50Ω |
| DWV | 1000V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Nickel Plated |
| Mating Cable | CXN3449 |
| Insulators | PTFE |
Note: We prefer to sell finished cable assemblies to ensure optimal quality.
Product Overview
The N series connector features threaded connections with air as the medium, delivering superior electrical performance up to 11GHz. Elite Electronic's precision connectors can reach 18GHz and are compatible with various RF cables.
- Excellent seismic performance and high reliability
- Wide frequency band for versatile applications
- Available in multiple configurations: straight, right angle, bulkhead, flange mount
- Shell materials: Copper alloy and stainless steel
Interface Dimensions

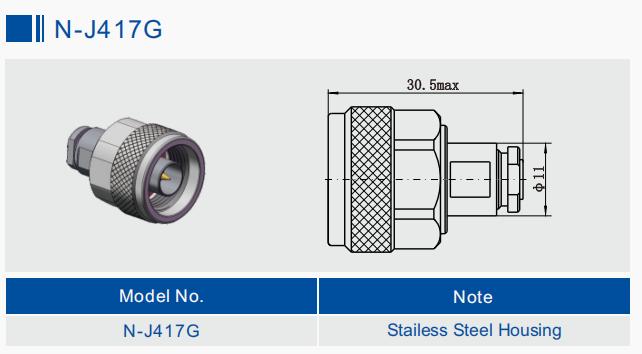

Outline Dimensions
Stainless Steel N Male/Plug RF Coaxial Connector for Cable CXN3449 (Model: N-J417G)
Contact sales3@xa-elite.com.cn for information about other N Type models or cable types including CXN3507, CXN3450, CXN3508, SFF Series, SYV Series, and RG Series cables.
Applications
Xi'an Elite Electronic provides systematic interconnection solutions for demanding industries:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication and measurement devices
- Electronics and microwave applications
Packaging & Shipping
Packaging
The connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.
Shipping
We use reliable courier services with tracking numbers provided for all shipments.
