SSMA Female / Jack Bulkhead Mount RF Coaxi Microstrip Connector , Screw 10-36UNS-2
Price:
The more quantity, the cheaper the price will be
MOQ:
MOQ 50 for new production
Delivery Time:
5-10 working days for stocked quantity
Brand:
ELT
Product Description
Bulkhead SSMA / Mini SMA Female RF Coax Microstrip Connector Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | Bulkhead SSMA Female Microstrip Connector |
| Model | SSMA-KYD2 |
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated, Some model we have Stailess Steel Shell |
| Mount Method | Bulkhead Screw |
| Insulators | PTFE |
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded connection (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions

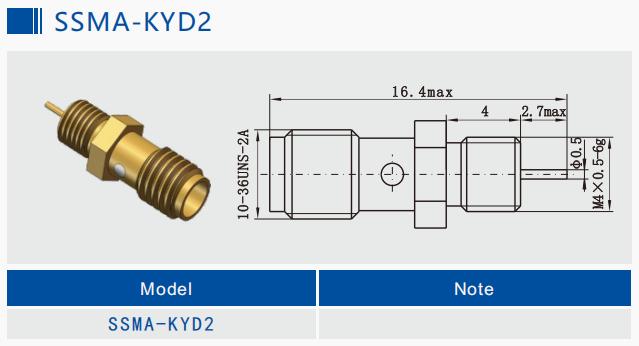

Bulkhead SSMA Female RF Coax Microstrip Connector Dimensions
Outline dimensions for the SSMA-KYD2 model (Unit: mm).

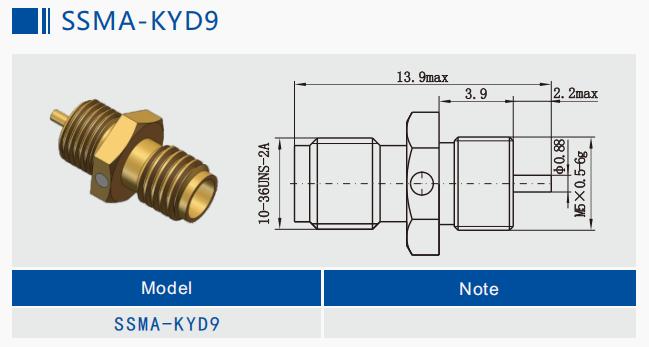

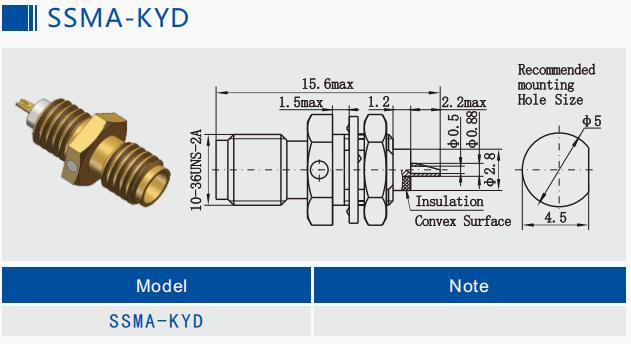

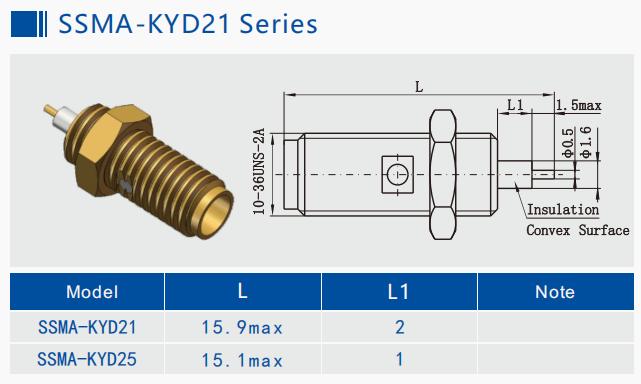

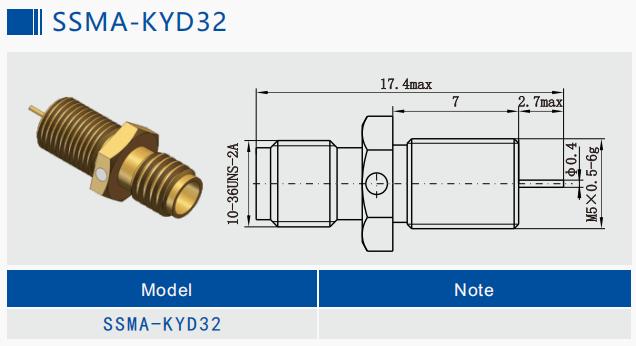

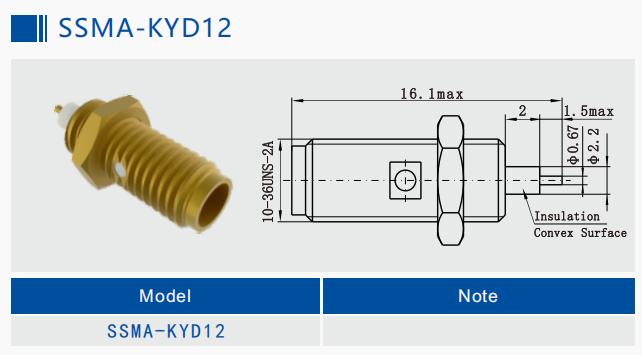

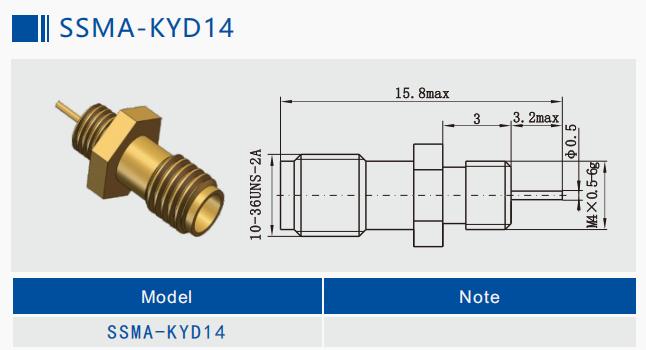

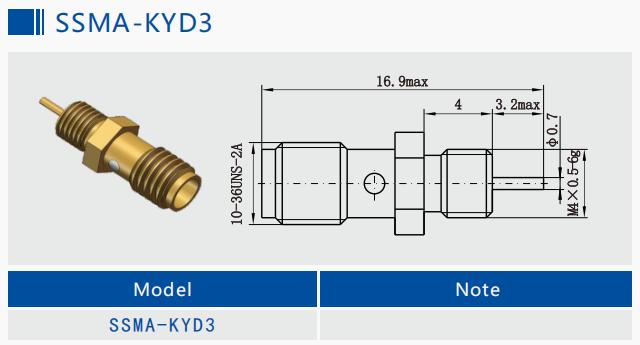

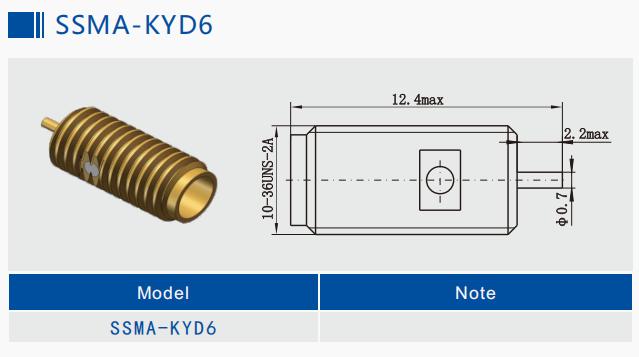

Other Model with Bulkhead Screw
Bulkhead SSMA Jack RF Coaxial Microstrip Connector Dimension

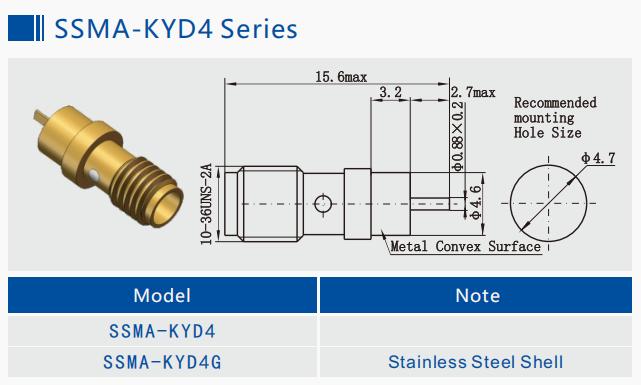

Bulkhead Stainless Steel SSMA Jack RF Coaxial Microstrip Connector Dimension
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each SSMA bulkhead mount connector is carefully packaged in protective cartons to ensure safe transit.![]()
Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
