Nano D Connector Male Plug 9 Pins~69 Contacts Crimping Wire Length 200cm
Product Description:
Technical Data:
| Product Model | J55A-9TJLC-200 (9pin, male plug, wire length 200mm) | ||
| Materials & Finish | |||
| Impedance | / | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 250V | Outer Conductor | Aluminum Alloy, Nickle Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PEEK |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
| Other Index | Mating Cable: AFR-250, white wire 0.035mm2 | ||

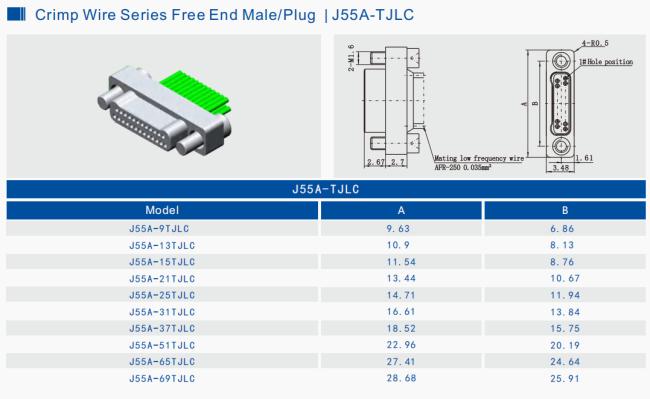

Outline Dimension of J55A Nano D Connector Male Plug with AFR-250 Wire length 200cm
Please contact us for more details.
Applications:
Xi'an Elite Electronic is a reliable manufacturer of RF Coaxial Connectors & Adapters, Cable Assemblies, Micro D connector, Nano D connectors, serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry for over 22 years.
Customization:
Product Customization Services for Micro D Connector:
Elite Electronic can supply different contacts such as 12 pins, 24pins, 35pins, 39 pins, 41pinsPacking and Shipping:
Product Packaging and Shipping for Nano D Connector Series Connector:
The Nano D Connector is carefully packaged to ensure safe delivery to our customers. Each connector is placed in anti-collision foam and then packed in a sturdy cardboard box to prevent any damage during transit.
For shipping, we use trusted carriers to deliver the product to your doorstep in a timely manner. Our packaging team takes great care in preparing your order for shipping to guarantee that it arrives in perfect condition.
