SSMA / Mini SMA Female Jack Bulkhead RF Coaxial Microstrip Connector with Screw Mount Up to 18GHz
| Items | Value |
|---|---|
| Product Name | Straight SSMA Female Bulkhead RF Coaxial Connector |
| Model |
SSMA-KYD21
|
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | Bulkhead Screw |
| Insulators | PTFE |
Compact Size with Wide Frequency Bandwidth The SSMA series connectors are designed to be compact, approximately 70% the size of traditional SMA connectors, making them ideal for applications where space is limited. Despite their smaller size, these connectors support a wide frequency bandwidth, ensuring robust performance across various frequencies.
Frequency Operation up to 30GHz Capable of operating at frequencies up to 30GHz, SSMA connectors are suitable for a wide range of high-frequency applications. This high-frequency operation allows for versatile use in advanced communication systems and RF applications.

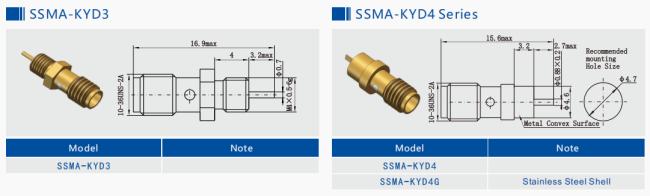

Other Model SSMA Female Bulkhead RF Coaxial Microstrip Connectors:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
