Hermetically Sealed 50Ω Gold Plated SMPS SMPM RF Connector Male PCB 60GHz for PCB Soldering
| Items | Value |
|---|---|
| Product Name | SMPS Male PCB Connector |
| Model | CMSP(M)-JHD22 |
| Frequency Range | 0.3MHz-60GHz |
| Impedance | 50Ω |
| Rated Voltage | 86v |
| DWV | 250V |
| Insulation Resistance | ≥2000MΩ |
| Center Conductor | Kaval Alloy, Gold Plated |
| Outer Conductor | Kaval Alloy, Gold Plated |
| Insulators | Glass Sintering |

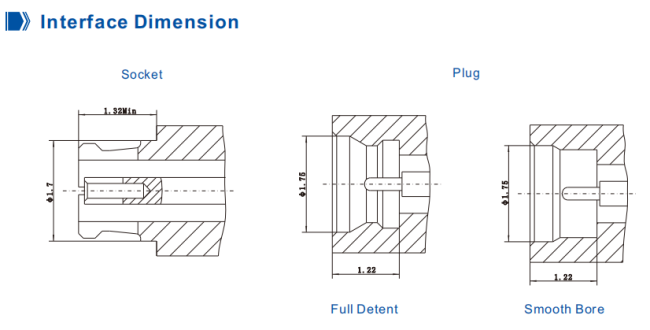

CSMP connectors are ultra-miniature push-on RF coaxial connectors characterized by the small size (smaller than SMPM RF Connector), light weight, and wide operating frequency range. They are used in pairs for board to board connections, suitable for modular dense mounting. The plug has two interface forms: full detent and smooth bore.
More models, please download our CSMP(SMPS) catalog.
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Packaging: Each CSMP connectors is carefully packaged in protective cartons to ensure safe transit.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar CSMP connectors models, please check our catalog. All can be produced quickly for the model on catalog.
