50Ω Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter 40GHz 170V
Price:
The price depend on the quantity
MOQ:
MOQ 50 pieces
Delivery Time:
8-12 weeks for new production
Brand:
ELT
Product Description
50Ω Gold Plated Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter
High-performance right angle SMP to SMPM (SSMP) male to female adapters designed for precision microwave signal transmission up to 40GHz frequency range. Manufactured with premium materials and strict quality control processes to ensure exceptional durability and reliability in demanding environments.
Product Specifications
| Items | Value |
|---|---|
| Product Name | Right Angle SMP Plug to SMPM Jack Adapter |
| Model | SMP/SSMP-JWFK |
| Frequency Range | 0.3MHz-40GHz |
| Impedance | 50Ω |
| Rated Voltage | 170v |
| DWV | 500V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
Product Outline Dimensions SMP/SSMP-JWFK (Unit: mm)
Please contact us at sales3@xa-elite.com.cn for model availability and additional series options.
Applications
- Communication Field: Used in wireless communication base stations and microwave communication systems to connect RF devices like antennas, filters, and amplifiers for high-quality signal transmission.
- Radar Systems: Facilitates signal connection between radar components for accurate RF signal transmission and target detection.
- Satellite Communication: Supports uplink/downlink transmission in satellite ground stations and equipment for stable communication.
- Testing Equipment: Used with network analyzers and spectrum analyzers for precise RF device testing and analysis.

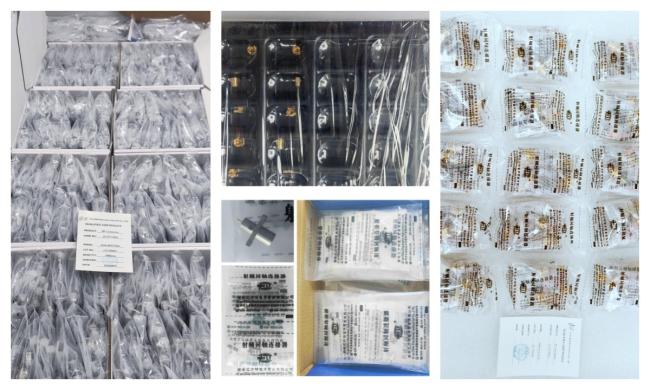

Packaging & Shipping
Each adapter is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar adapter models, please check our catalog. While some models are in stock, all can be produced quickly for models listed in our catalog.
