Hermetically Sealed 50Ω Copper Alloy Bulkhead Female Mini SMA Jack SSMA RF Connector for Harsh Environments
Price:
Depending on the quantity
MOQ:
In Stock, MOQ 50 for new production
Delivery Time:
5-7 working days for stocked quantity
Brand:
ELT
Product Description
Hermetically Sealed 50Ω Copper Alloy Bulkhead Female/Socket SSMA RF Connector
High-Frequency Performance up to 18GHz
The SSMA RF connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
SSMA RF Connectors are high-frequency, low-loss, miniaturized panel-mounted RF interfaces. Their primary application is in RF systems with 50Ω impedance matching (such as communication devices, test instruments, and satellite terminals) to achieve reliable RF signal transmission across device panels. They are particularly suitable for scenarios requiring installation space and high-frequency signal transmission.
Key Features:
- Compact design - SSMA RF Connectors are 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple structures: straight, right angle, cable type, bulkhead screw, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Connectors

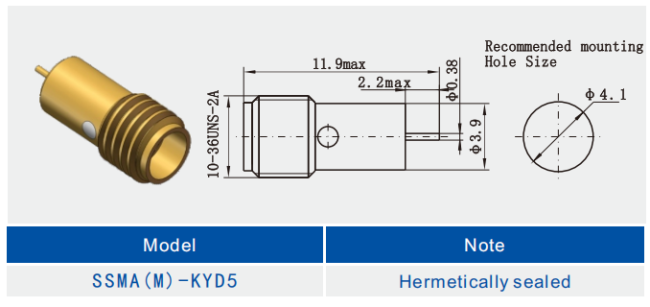

Hermetic Sealed Bulkhead Female SSMA RF Connectors Dimention:
Model No.: SSMA(M)-KYD5
Note: Please check our catalog for more similar models according to your application.
![Industrial applications of SSMA connectors]()
![]()
Applications
Xi'an Elite Electronics specializes in RF coaxial connectors, adapters, cable assemibles for industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- High End Electronics applications
Packaging & Shipping

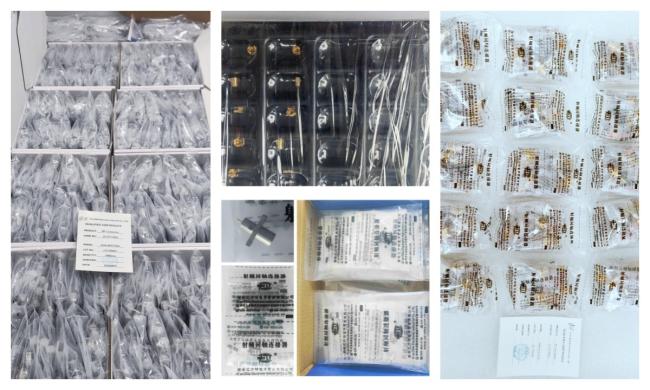

Each Bulkhead Jack SSMA RF Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
