Product Description:

SMP Connector is a push-on mating type connector with an interface that is ultra-small, similar in scale to the MMCX connector. This makes it highly suitable for high-density blind mating, especially for applications involving printed circuit boards, chassis, and cabinets. It is generally used in pairs,our solution for board to board PCB connect such as full detent/limited detent connectors+ In series adapters +smooth bore connectors.

Based on different connection retention forces, SMP connectors are divided into three interface types: smooth bore, limited detent, and full detent, each catering to different application needs:

1) Smooth Bore Interface: This type offers the least connection retention force, allowing for axial and radial misalignment. It is commonly used in blind-mate connections or non-precision measurements and has the longest lifespan.

2) Full Detent Interface: This type provides the best connection retention force and the best resistance to vibration and shock. Due to its difficulty to disconnect once connected, despite its high stability, it significantly impacts product lifespan and convenience, with a lifespan of only around 500 cycles. It is often used for cable connections.

3) Limited Detent Interface: Also known as semi-detent interface, it combines the advantages of smooth bore and full detent, offering high test stability and a longer lifespan compared to full detent. It is suitable for precision measurements.

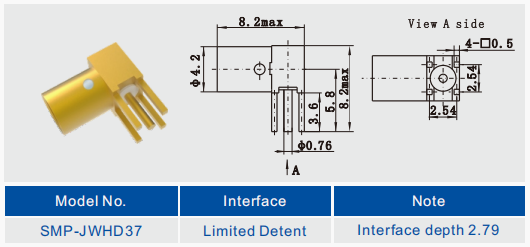

SMP Male Right Angle RA Limited Detent Connector (Unit: mm): SMP-JWHD37

Other SMP Male RA Limited Detent or Smooth Bore Connector Similar Model:

SMP Male RA Limited Detent Connector PCB Soldering Model: SMP-JWFD22 & SMP-JWFD22-S

SMP Male RA Limited Detent Connector Flange Mount Model: SMP-JWFD11

More products, please contact us freely for the products catalog sales3@xa-elite.com.cn

Applications:

Due to the shorter pins or even pinless design of SMP components, the electrical path is shorter, which helps improve signal transmission speed and stability, thereby enhancing the overall performance of electronic products. SMP components also have good vibration and impact resistance, and a low defect rate in solder joints. This makes products soldered with SMP exhibit excellent reliability, enhancing the overall durability of the products.

SMP soldering technology is widely used in communications, consumer electronics, computers, automotive electronics, industrial control, and aerospace fields. In these areas, SMP technology plays an irreplaceable role, driving the miniaturization and high-performance development of electronic products.

Customization:

Product Customization Services for SMP RF Connector:

Brand Name: ELT

Price: Depending on the quantity

Please send us the drawing and we will let our engineer to arrange the evaluation or we recommend us the alternative model.
