Hermetic SMP Male RF Coax Connector Through Hole PCB Mount Designed for Board to Board Blind Mate
Product Description:
Technical Parameters:
| Center Contact | Kovar, Gold Plating |
| Impedance | 50 Ohm |
| Gender | Male |
| Insulators | Glass |
| Operating Temperature | -55°C To +165°C |
| Housing Materials | Kovar, Gold Plating |
| Frequency Range | DC ~ 40 GHz |
| Interface Form | Limited Detent, Smooth Bore |
| DWV | 500 VRMS* |
| Application | Aerospace, Aviation, Navigation, Satcom, Telemetry, Remote Control, Radar, 5G Base Station |
Applications:
This SMP RF Coaxial Connector is suitable for aerospace telemetry, satellite communication, radar systems, or 5G infrastructure, the Elite Electronics SMP RF Connector provides reliable, high-performance connectivity solutions. Its supply ability is flexible to meet various demands, making it a preferred choice for engineers and system integrators seeking quality SMP connectors with proven performance and global certification standards.
Customization:
Elite Electronics offers customized Product Customization Services for the SMP RF Connector series. Our High Frequency SMP Connector products are certified with Rohs, ISO 9001, and 14001, ensuring top quality and environmental standards compliance.
Interface forms available include Full Detent, Limited Detent, and Smooth Bore, providing versatile options to fit various connection needs. Choose Elite Electronics’s High Frequency SMP Connector customization services for reliable, high-performance RF connections tailored to your specifications.
MOQ for Customization: 200pieces

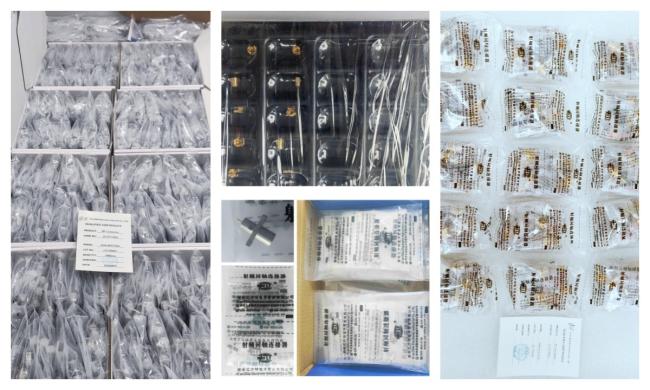

Packing & Shipping:
Our SMP RF Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material and placed in a sturdy, cushioned box to prevent any damage from shocks or vibrations.
The packaging is clearly labeled with product information, including part numbers and specifications, to facilitate easy identification and inventory management.
FAQ:
Q1: What is the brand and model number of the SMP RF Connector?
A1: The SMP RF Connector is branded ELT and the model number starts with SMP-***
Q2: Where is the SMP RF Connector manufactured?
A2: The SMP RF Connector is manufactured in Xi'an, China.
Q3: What certifications does the SMP RF Connector have?
A3: The SMP RF Connector is certified with Rohs, ISO 9001, and ISO 14001.
Q4: What is the minimum order quantity and packaging details for this product?
A4: The minimum order quantity is 50 pieces, but there is no MOQ restriction if the product is in stock. Packaging is 1 piece per plastic bag and 10 bags per carton.
Q5: What are the payment terms and delivery time for the SMP RF Connector?
A5: Payment can be made via T/T or LC, and the delivery time for stocked quantity is 5-7 working days.
