J30J Series Connector 31contacts Male Plug with Wire Length 1000mm for Sensor System
Product Description:
Adopts flexible twisted pin contacts, with a contact pitch of 1.27 mm.
Contacts: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100pin
Contacts are made of gold-plated copper alloy to ensure low contact resistance and corrosion resistance.
Aluminum alloy housing with electroless nickel plating; threaded locking ensures secure connection under vibration.
Supports wire solder, right-angle / straight PCB mount, and crimp with wire.
Technical Data:

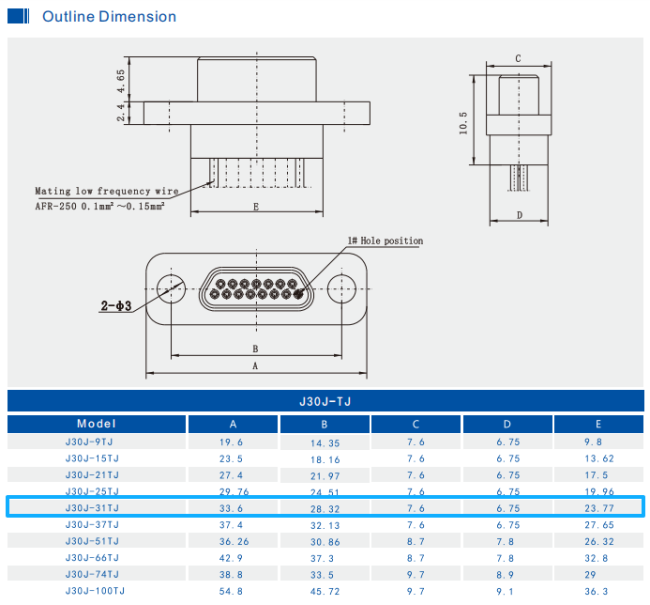

Outline Dimension of J30J Series Connector 31 contacts Male Plug:
| Product Model | J30J-31TJL-1000 (31pins, male plug, wire length 1000mm) | ||
| Technical | Materials & Finish | ||
| Impedance | / | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 800V | Outer Conductor | Aluminum Alloy, Nickle Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PBT |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
Applications:
Aerospace: Radar system, satcom, and telemetry & control systems
Electronics: Communication electronics, vehicle-mounted equipment and systems
High-end Industry: Medical equipment, testing instruments, downhole detection equipment
Microwave & RF Equipment: Miniature transceiver modules, PCB-to-PCB / PCB-to-cable interconnection
Customization:
Customize your J30J Series Connectors with Elite Electronics‘ Product Customization Services:
We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.
Packing and Shipping:
- Packaging:
The J30J Series Connectors is securely packed in a durable cardboard box to prevent damage during shipping.
- Shipping:
We use fedex, DHL or air shipment to ensure safe and timely delivery of your J30J Series Connectors.
