J30J Series Connector Rectangular Male Plug 51contacts Male Plug with Crimping Wire Length 500mm for Circuit Connection Component
Product Description:
Features flexible twist‑pin contacts with a 1.27 mm contact pitch for stable electrical performance.
Available contact configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins.
Contacts are gold‑plated copper alloy to supply low contact resistance and excellent corrosion resistance.
Housed in rugged AL alloy with electroless nickel plating for durability and effective shielding.
Equipped with threaded coupling to ensure a secure, vibration‑resistant connection in demanding operating conditions.
Supports multiple termination styles, including solder termination, right‑angle / straight PCB mounting, and crimp‑to‑wire assembly.
Technical Data:

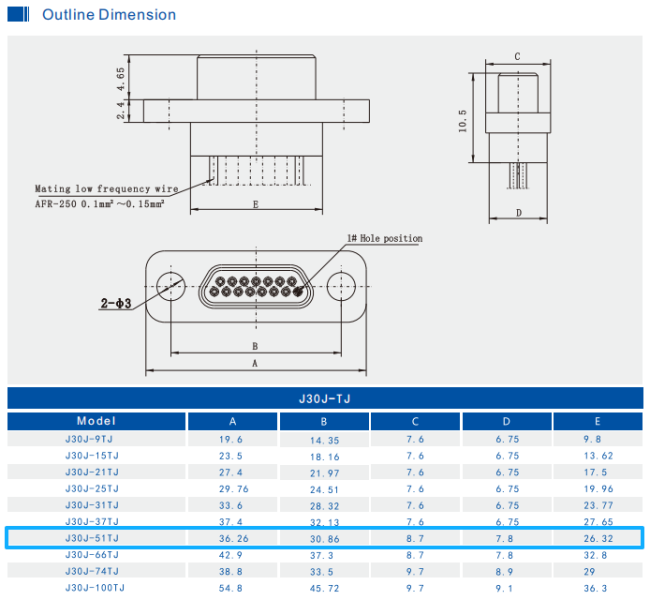

Outline Dimension of J30J Series Connector 51 contacts male Plug:
| Product Model |
J30J-51TJL-500 (51pins, male plug, wire length 500mm) |
||
| Technical | Materials & Finish | ||
| Impedance | / | Center Conductor | Copper Alloy, Gold Plating |
| DWV | 800V | Outer Conductor | Aluminum Alloy, Nickle Plating |
| Insulation Resistance | >5000MΩ | Insulation Dielectric | PBT |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
Applications:
Aerospace: Radar system, satcom, and telemetry & control systems
Electronics: Communication electronics, vehicle-mounted equipment and systems
High-end Industry: Medical equipment, testing instruments, downhole detection equipment
Microwave & RF Equipment: Miniature transceiver modules, PCB-to-PCB / PCB-to-cable interconnection
Customization:
Customize your J30J Series Connectors with Elite Electronics‘ Product Customization Services:
We also can customize the special pins such as the 12 pins, 24 pins, 35pins, 39 pins, 41 pins, we will arrange the project evaluation by our engineer before the customization.
Packing and Shipping:
- Packaging:
The J30J Series Connectors is securely packed in a durable cardboard box withiner protected foam to prevent damage during shipping.
- Shipping:
We use reliable courier services for safe and prompt delivery. All shipments include tracking numbers & are packed securely to prevent mishandling during transportation.
