40GHz 2.92mm RF Connector Male Plug mmWave Two Holes Flange Panel Mount Matched Pin Diameter 0.3mm
Product Description:
2.92mm RF Connectors (K Type) Interface Dimenstion:

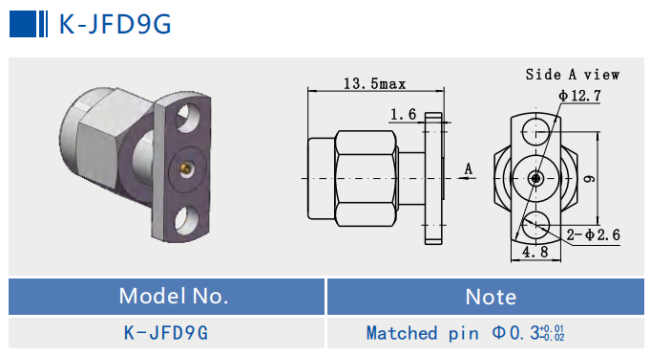

Outline Dimension of Two Holes Flange Mount Stainless Steel 2.92mm Wave Connectors Male Plug : K-JFD9G (Unit: mm)

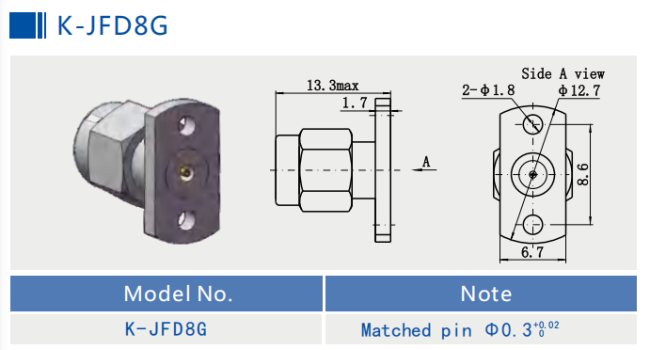

Outline Dimension of Two Holes Flange Mount Stainless Steel 2.92mm Wave Connectors Male Plug : K-JFD8G (Unit: mm)

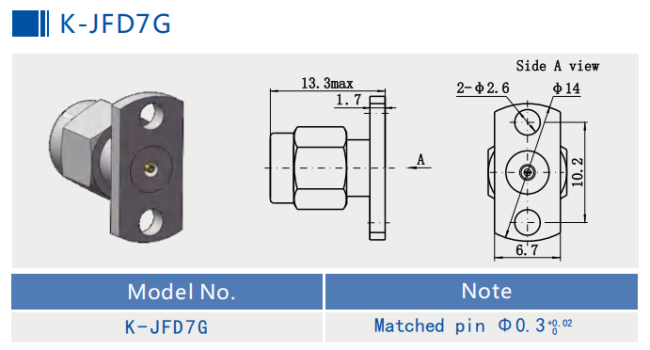

Outline Dimension of 2 Hole Flange Mount Stainless Steel 2.92mm Wave Connectors Male Plug : K-JFD7G (Unit: mm)

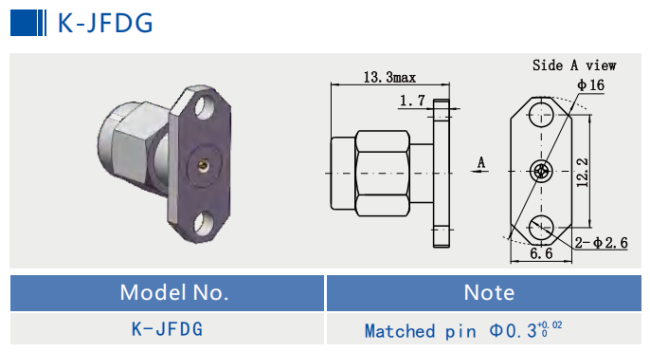

Outline Dimension of 2-Hole Flange Mount Stainless Steel 2.92mm RF Connectors Male Plug : K-JFDG (Unit: mm)

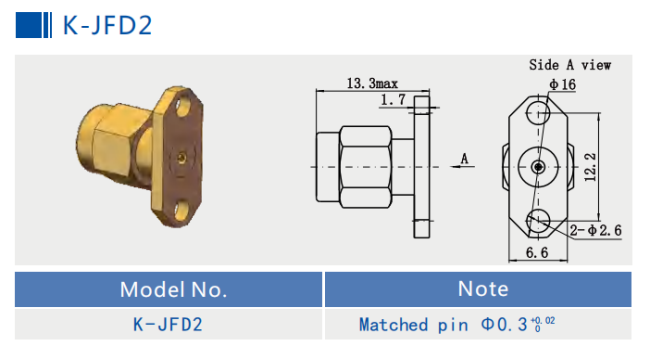

Outline Dimension of 2-Hole Flange Mount Copper Alloy 2.92mm RF Connectors Male Plug : K-JFD2 (Unit: mm)

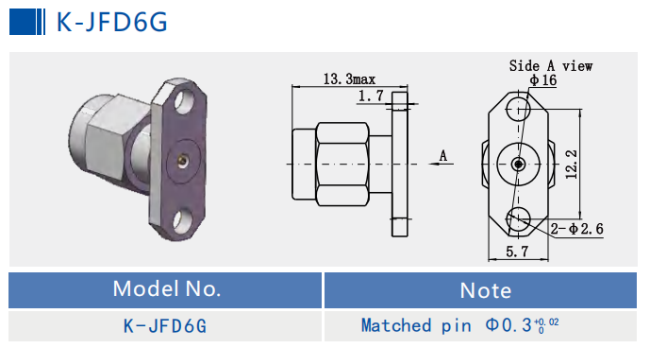

Outline Dimension of 2-Hole Flange Mount Stainless Steel 2.92mm RF Connectors Male Plug : K-JFD6G (Unit: mm)
Applications:
Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.
Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing and Shipping:
Packaging:
The Stainless Steel 2 Holes Flange Mount 2.92mm RF Connector is carefully packaged in carton to ensure its protection during transit.
Shipping:
We ship the Stainless Steel Two Hole Flange Mount 2.92mm RF Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
