40GHz 2.92mm RF Connector Female Four Holes Flange Panel Mount Matched Pin Diameter 0.051 inch（1.3mm) Flange Hole Spacing 0.339 inch (8.6mm)
Product Description:
2.92mm RF Connectors (K Type) Interface Dimenstion:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | 0.04GHz~40GHz | |
| Rated Voltage | 250V | |
| Dielectrics Voltage-resistance | 750V | |
| Insulation Resistance | ≥ 5000 MΩ | |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Copper Alloy, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass, stainless steel | Gold plated or Passivation |
| Insulators | Glass sintering / PTFE / PEI | |
| Temperature | -55℃ ~ +125℃ | |

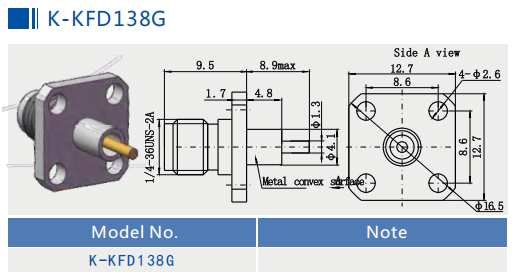

Outline Dimension of 4 holes Flange Mount Stainless Steel 2.92mmWave Connectors female : K-KFD138G (Unit: mm)

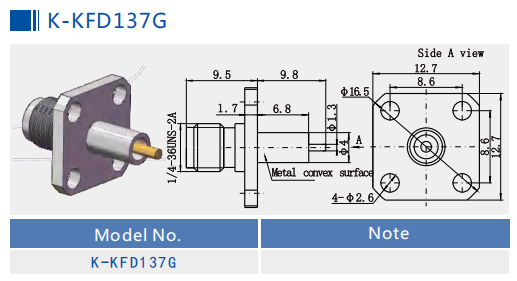

Outline Dimension of 4 Holes Flange Mount Stainless Steel 2.92mm Wave Connectors female : K-KFD137G (Unit: mm)
More 2.92mm Connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available
Applications:
Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing & Shipping
Packaging:
The Stainless Steel 4 Holes Flange Mount 2.92mm RF Connector is carefully packaged in carton to ensure its protection during transit.
Shipping:
We ship the Stainless Steel Four Hole Flange Mount 2.92mm RF Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
