Brass 40 GHz 2.92mm RF Connector K Type Jack Flange Hole Spacing 12.2mm and Pin Diameter 1.3mm
Product Description:
2.92mm RF Connectors (K Type) Interface Dimenstion:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | 0.04GHz~40GHz | |
| Rated Voltage | 250V | |
| Dielectrics Voltage-resistance | 750V | |
| Insulation Resistance | ≥ 5000 MΩ | |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Copper Alloy, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass, stainless steel | Gold plated or Passivation |
| Insulators | Glass sintering / PTFE / PEI | |
| Temperature | -55℃ ~ +125℃ | |

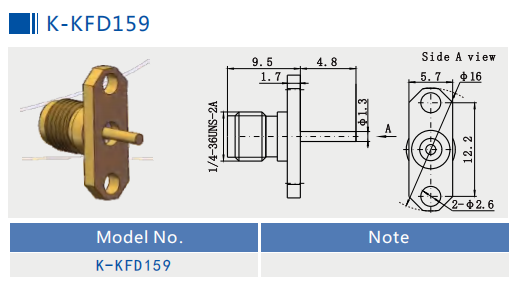

Outline Dimension of 2 Holes Flange Mount Copper Alloy 2.92mmWave Connectors Female :
| Flange Hole Spacing | 12.2mm |
| Flange Width | 5.7mm |
| Pin Diameter | 1.3mm |

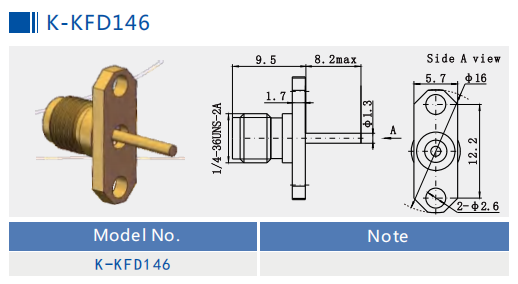

Outline Dimension of 2 Holes Flange Mount Copper Alloy 2.92mm Wave Connectors female : K-KFD146 (Unit: mm)
| Flange Hole Spacing | 12.2mm |
| Flange Width | 5.7mm |
| Pin Diameter | 1.3mm |
More 2.92mm Connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available
