50Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Cable Mating for RG403

Price Negotiable
Price: Depending on the quantity
MOQ: In Stock, MOQ 50 for new production
Delivery Time: 5-7 working days for stocked quantity
Brand: ELT
Product Description
50Ω 18GHz SSMA Male Mini SMA RF Coaxial Connector Mating for Cable RG403 (Cable OD 3.58mm)
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
SSMA RF Coaxial Connector interface dimensions diagram
Mini SMA Plug RF Coaxial Cable Connector Dimenstion:
Model No.:  SSMA-JB3 ( mating cable RG402, Cable OD 3.58mm)

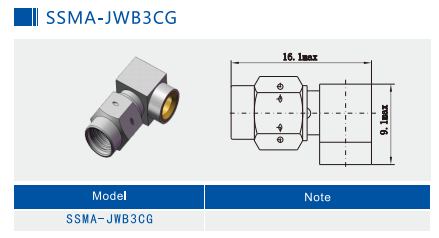

   SSMA male right angle type ( mating cable RG402, Cable OD 3.58mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Industrial applications of SSMA connectors
Packaging and Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:

We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
