50 Ω 3GHz Straight Mini SMA Male SSMA RF Coax Connector Mating 7 Multi Core Conductor Flexible Cable
Price:
Depending on the quantity
MOQ:
In stock, MOQ 50pcs for new production
Delivery Time:
5-7 working days for stocked quantity
Brand:
ELT
Product Description
50 Ω 3GHz Mini SMA Male SSMA RF Connector Mating 7 Multi Core Conductor Flexible Cable
High-Frequency Performance up to 18GHz
The SSMA RF connector is a miniaturized version of the SMA RF connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
- Compact design - 30% smaller than standard SMA RF connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability

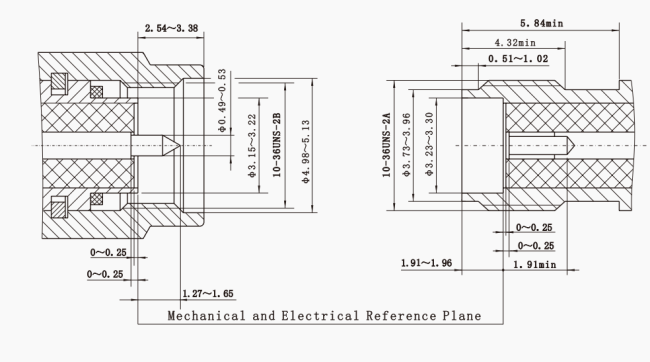

Interface of SSMA RF Connectors
Mini SMA RF Connector Dimenstion:

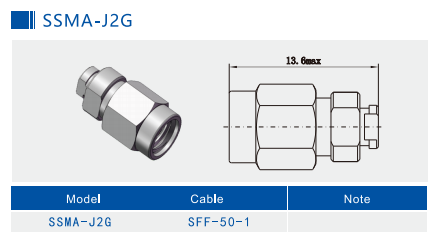

Model No.: SSMA-J2G ( Mating Cable SFF-50-1, Cable OD 1.8mm)

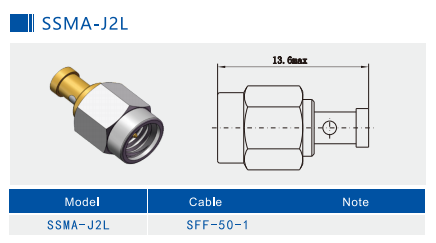

Model No.: SSMA-J2L ( Mating Cable SFF-50-1, Cable OD 1.8mm )

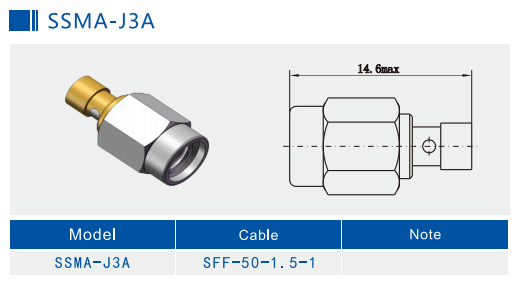

Model No.: SSMA-J3A ( Mating Cable SFF-50-1.5-1, Cable OD 2.55mm )

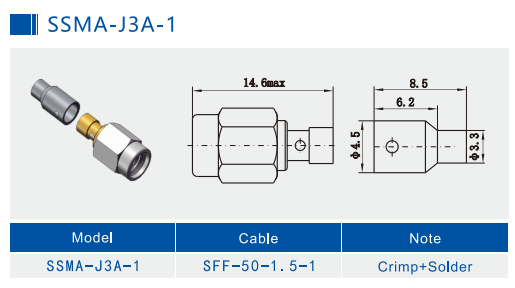

Model No.: SSMA-J3A-1 ( Mating Cable SFF-50-1.5-1, Cable OD 2.55mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SSMA RF Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
Other Products Catalogs
| SMA SSMA RF Connectors |
| SMP SMPM CSMP ASMP Connectors |
| mmW Connectors Catalog (2.92mm, 2.4mm, 1.85mm, 1.0mm, 0.8mm) |
| Between Series RF Adapter ( SMA to SSMA, SMP to SMPM, SMA to 2.92mm, SMA to N....) |
| N TNC TNCA Connectors |
| BMA SBMA Connectors |
| MCX & MMCX Connectors |
| Micro D Connectors J30J+J30J+J55A+J55AM+J56J |
| Hermetic Glass to Metal Seals |
| RF Coaxial Cable Assembly |
| Customized Product (Antennas, Filters, Power Dividers, Coupler, Waveguide Components, Test Fixtures, Package Modules) |
For more product models information or specification, please check our catalog or contact our sales team through:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
