50Ω 18GHz SSMA Female Mini SMA Jack 4 Leg Through Hole PCB Mount Aerospace RF Connectors with Low Insertion Loss Max 0.3dB
Price:
Depending on the quantity
MOQ:
MOQ 50 for new production
Delivery Time:
5-7 working days for stocked quantity
Brand:
ELT
Product Description
50Ω 18GHz SSMA Female Mini SMA Jack 4 Leg Through Hole PCB Mount Aerospace RF Connectors with Low Insertion Loss Max 0.3dB
The SMA (SubMiniature Version A) connector is a widely used coaxial RF connector designed for microwave and wireless communication systems. It features a 50Ω impedance, threaded coupling mechanism, and compact size, offering excellent electrical performance and mechanical stability.
SMA connectors support frequency range from DC up to 18 GHz , and extended high-performance types can reach up to 26.5 GHz. They are commonly applied in antennas, RF modules, coaxial cable assemblies, waveguide-to-coaxial transitions, base stations, test instruments, and aerospace communication equipment.
With advantages of low insertion loss, low VSWR, high vibration resistance and easy installation, SMA connectors have become the mainstream interface in civilian communication, industrial control and microwave transmission fields.
SMA Design Features
- Compact design
- Frequency band operation up to 18GHz
- Rugged construction for reliability, Screw 1/4-36UNS-2A
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss

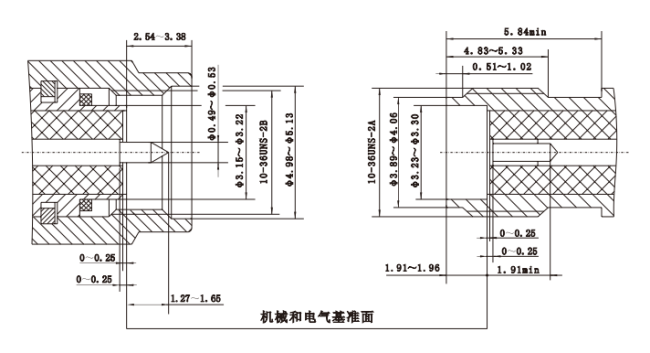

Interface of SMA RF Coaxial Connectors

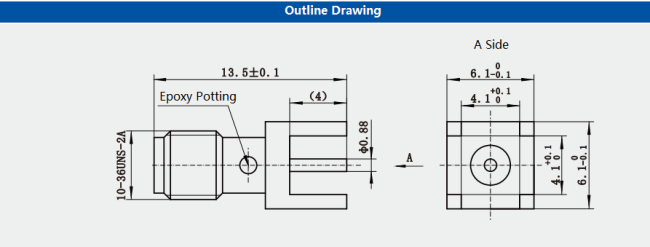

SMA Female Through Hole PCB Mount, Model No.: SMA-KHD35
Note: Please check our catalog for more similar models according to your application.
![Industrial applications of SSMA connectors]()
![]()
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMA 4 leg through hole PCB mounting connectors aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
