50Ω 40GHz Hermetically Sealed SMP Male Plug Bulkhead Connector Aerospace RF Connectors with Low Insertion Loss
Price:
Depending on the quantity
MOQ:
MOQ 50 for new production
Delivery Time:
5-7 working days for stocked quantity
Brand:
ELT
Product Description
50Ω 40GHz SMP Male Plug Bulkhead Connector Aerospace RF Connectors with Low Insertion Loss
The SMP series is a miniature push-on RF coaxial connector. It features compact size, light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 40 GHz. The SMP plug features three interface types: full detent, limited detent and smooth bore. It supports blind-mate interconnection and enables both axial and radial floating of the connection structure. As one of the most widely used RF coaxial connectors, it is suitable for RF and microwave signal transmission as well as modular dense installation scenarios. It is extensively applied in vehicle-borne, ship-borne and satellite-borne application.
SMP Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability, Bulkhead Screw M5x0.5-6g
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMP RF Coaxial Connectors

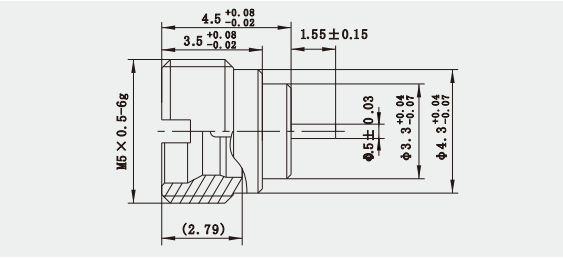

Hermectic Sealed SMP Male Bulkhead Connector Model No.: SMP(M)-JYD14G

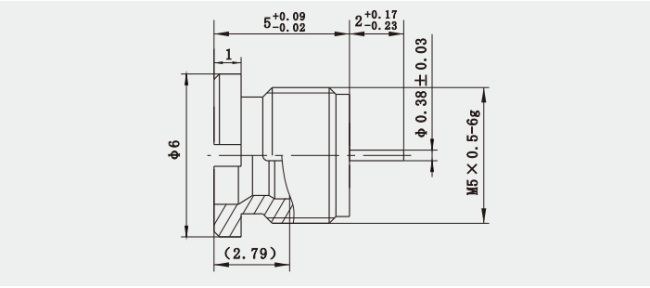

Similar Type: Hermectic Sealed SMP Male Bulkhead Connector SMP(M)-JYD150
Note: Please check our catalog for more similar models according to your application.
![Industrial applications of SSMA connectors]()
![]()
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMP connectors aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
