WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components
Product Description:

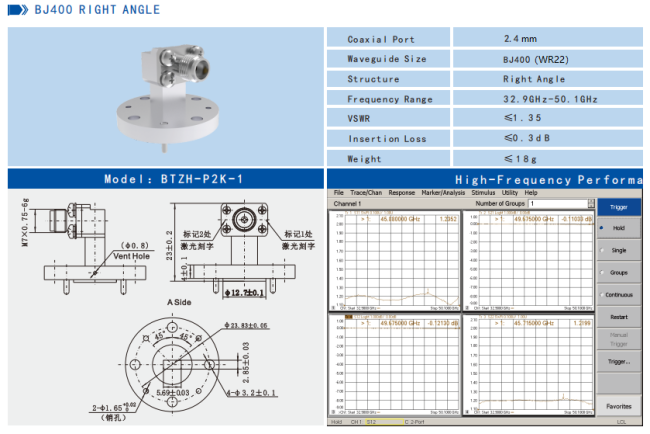

Outline Dimension of waveguide WR22 to 2.4mm connectors:
Model No.: BTZH-P2K-1
More waveguide connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available
Applications:
Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing & Shipping
Packaging:
The waveguide WR 22 to coaxial 2.4mm connectors is carefully packaged in carton to ensure its protection during transit.
Shipping:
We ship the the waveguide WR22 to coaxial 2.4mm connectors using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
Waveguide Port Comparison
|
BJ (Chinese Standard) |
WR | Frequency (GHz) | Inner Width | Inner Height | Common Freq. Band |
| BJ70 | WR137 | 5.38～8.17 | 34.85 | 15.8 | C/X Band |
| BJ84 | WR112 | 6.57～9.99 | 28.5 | 12.62 | X Band |
| BJ100 | WR90 | 8.20～12.50 | 22.86 | 10.16 | X Band |
| BJ120 | WR75 | 9.84～15.00 | 19.05 | 9.525 | Ku low freq. |
| BJ140 | WR62 | 11.90～18.00 | 15.8 | 7.9 | Ku Band |
| BJ180 | WR51 | 15.80～24.00 | 12.95 | 6.48 | Ku high/K low freq. |
| BJ220 | WR42 | 18.00～26.50 | 10.67 | 5.33 | K Band |
| BJ260 | WR34 | 21.70～33.00 | 8.636 | 4.318 | Ka low freq. |
| BJ320 | WR28 | 26.50～40.00 | 7.112 | 3.556 | Ka |
| BJ400 | WR22 | 33.00～50.00 | 5.69 | 2.845 | Ka High freq. / U |
| BJ500 | WR19 | 39.20～59.60 | 4.775 | 2.388 | U/V Band |
| BJ620 | WR15 | 50.00～75.00 | 3.759 | 1.88 | V Band |
| BJ740 | WR12 | 60.50～91.90 | 3.099 | 1.549 | E Band |
| BJ900 | WR10 | 75.00～110.0 | 2.54 | 1.27 | W Band |
| BJ1200 | WR08 | 92.20～140.0 | 2.032 | 1.016 | F Band |
