Male Right Angle MMCX RF Connector Copper Alloy Nickel Plating for Cable RG316
Price:
Negotiable
MOQ:
100
Delivery Time:
5-8 work days
Brand:
ELT (Elite)
Product Description
MMCX Manufacturer MMCX Male Right Angle RF Coaxial Cable Connector for RG 316
MMCX series is a kinds of micro insertion stop RF coaxial connector which is smaller than MCX, widely used in the small communication devices and network devices that strict requirements for volume and weight.
Specification
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | DC~6GHz | ||
| Rated Voltage | 170VRMS* | ||
| Dielectrics Voltage-resistance | 500VRMS* | ||
| Insulation Resistance | ≥2000MΩ | ||
| Center Resistance | Center Conductor | ≤10mΩ | |
| Outer Conductor | ≤5mΩ | ||
| VSWR | ≤1.3 | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Brass Gold plated | |
| Female | Beryllium bronze Gold plated | ||
| Elastic Contact | Beryllium bronze Gold plated | ||
| Shell and other Metal Parts | Brass Gold plated | ||
| Crimping Sleeve | Brass Nickel plated | ||
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||

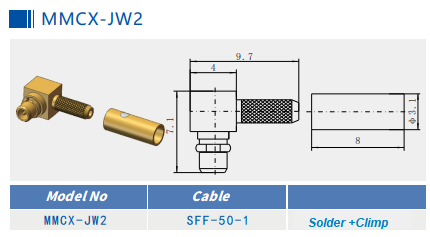

Detailed Outline Drawing
Application:
* Network
* Satcom
* Computer/LANs
* Computer/LANs
* Mobile communication
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Radio, TV aerial system
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of MMCX Connector, if the connector you are using is not found, please contact us with your details.
