SMA series is a kinds of mini, high-frequency RF coaxial connector. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.
Electrical Characteristics:
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Material and Mechanical Characteristics:
| Center Conductor | Male/Plug | Brass | Gold Plated |
| Female/Socket | Beryllium Bronze | Gold Plated | |
| Resilient Contact | Beryllium Bronze | Nickel Plated | |
| Shell/Housing | Brass | Gold Plated | |
| Shell/Housing | Stainless Steel | Passivated | |
| Insulator | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500cycles | ||
| Torque | 0.79~1.13N.m | ||
| *Other material and finish coating can be customzied | |||

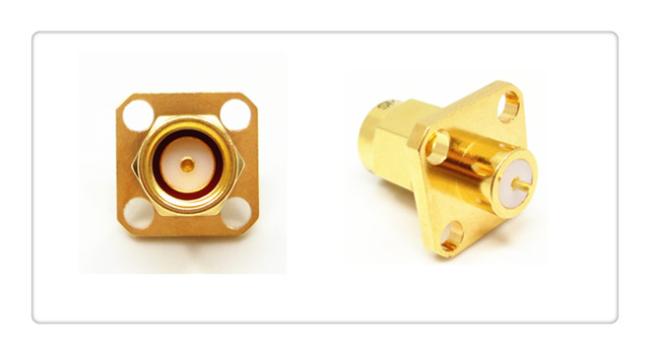

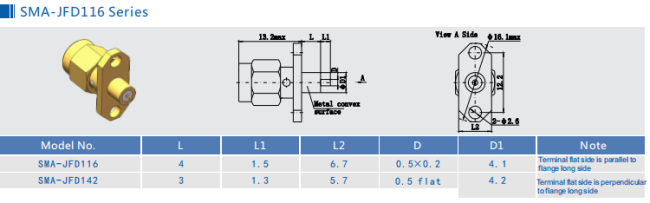

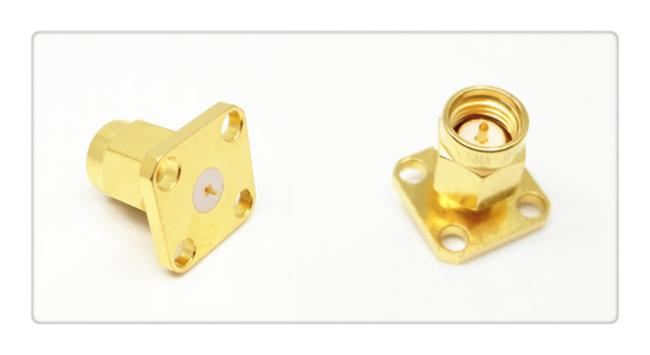

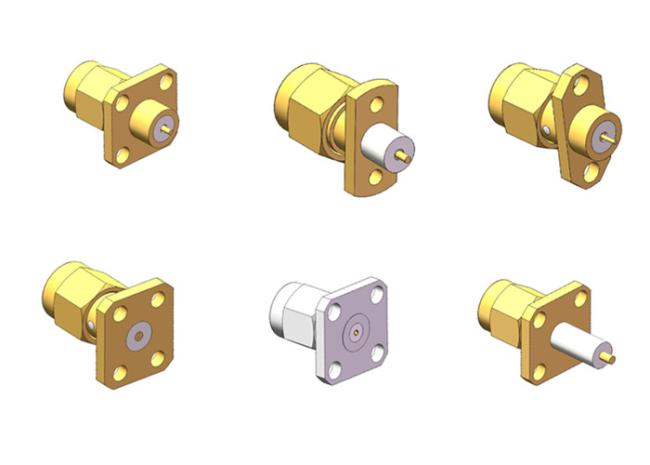

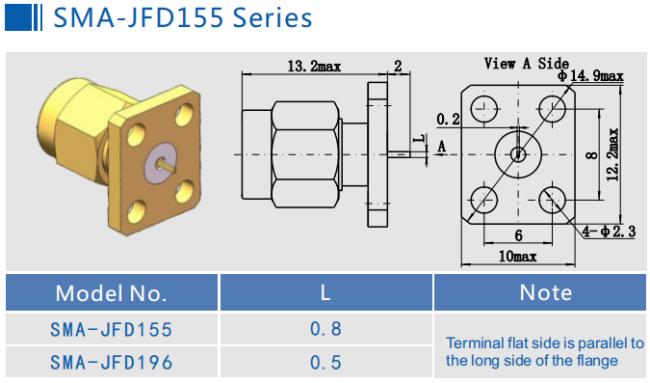

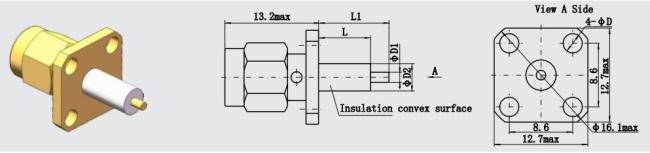

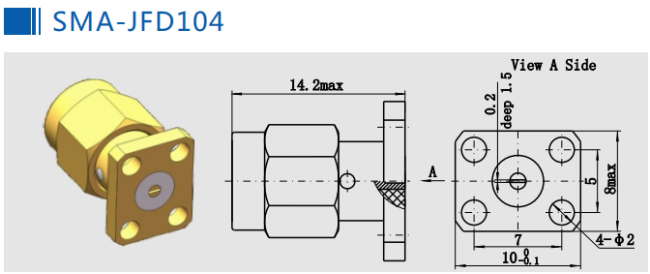

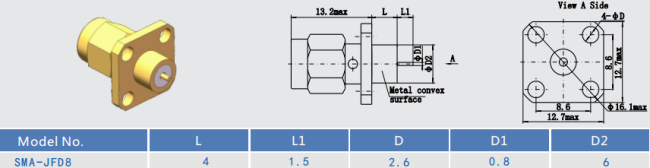

Outline Drawing of Part SMA Male Series Connector:(mm)
|
Part Number
|
Description
|
|
SMA-JFD8
|
SMA Male 4 Holes Flange RF Connector
|
|
SMA-JFD133
|
SMA Male 4 Holes Flange RF Connector with extended Insulator
|
|
SMA-JFD104
|
SMA Male 4 Holes Flange RF Connector
|
|
SMA-JFD116
|
SMA Male 2 Holes Flange RF Connector
|
|
SMA-JFD155
|
SMA Male 4 Holes Flange RF Connector
|
-----------------------------------------------------------------------------------------------------------------------------------
1.SMA-JFD8
-----------------------------------------------------------------------------------------------------------------------------------------------------------
2.SMA-JFD133
| Model No. | L | L1 | D | D1 | D2 |
| SMA-JFD133 | 0 | 0.9 | 2.6 | 0.5 | 0 |
-----------------------------------------------------------------------------------------------------------------------------------------------------------
3.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
4.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
5.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Application:
*Board-to-board interconnect
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
