Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.
The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years. Catalog-Glass-to-Metal Hermetic Seals.pdf
Specification:
| Product Name | Hermetic Glass to Metal Seals |
| Impedance | DC or other |
| Type | 1 pin |
| Rows | 1 row |
| Color | Gold plated |
| Housing and pin material | Kovar 4J29 |
|
Glass material
Glass Color
|
7050 or 7070 type
Green or White
|
| Freqecncy Range | NA |
| VSWR | NA |
| Withstand Voltage | ≥300V |
|
Hermecity Leak Rate |
< 1.01325 X 10-3 Pa*cm3/s |
| Insulation Resistance | ≥2000MΩ for single pin, ≥1000MΩ for multi-pin, |
| Operating temperature | -65℃~+260℃ |
Features:
-Small size
-lightweight
-Hermetic
-Stable quality and high reliability
-Inner conductor: Gold wire bonding, soldering and mating method for choice
Application:
Wide application range of electronics packages, satellites, radar and other in avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.

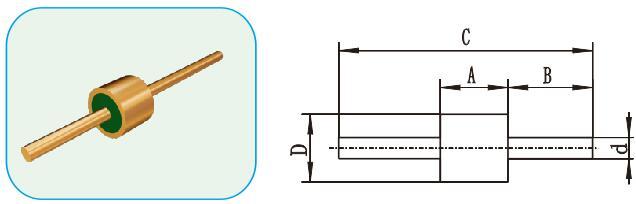

Detailed Image
Product List:
| Model | A | B | C | d | D | Termination | Model | A | B | C | d | D | Termination |
| JK1515-0.38 | 1.5 | 1.5 | 5 | 0.4 | 1.5 | soldering | JK1614-0.5B-JH | 1.4 | 0.5 | 17.9 | 0.5 | 1.6 | bonding L |
| JK1615-0.38 | 1.5 | 1.9 | 8 | 0.4 | 1.6 | soldering | JK1615-0.5-1-JH | 1.5 | 2.5 | 9 | 0.5 | 1.6 | bonding L |
| JK1515-0.38-2-JH | 1.5 | 0.5 | 4.5 | 0.4 | 1.5 | bonding 2 | JK2044-0.5-JH | 4.4 | 0.4 | 6.3 | 0.5 | 2 | bonding 2 |
| JK151616-0.4 | 1.6 | 14.2 | 30 | 0.4 | 1.6 | soldering | JK2016-0.5-2-JH | 1.6 | 0.6 | 4.5 | 0.5 | 2 | bonding 2 |
| JK1616-0.45 | 1.6 | 4 | 16 | 1.45 | 1.6 | soldering | JK1919-0.6-JH | 1.9 | 1.9 | 7.9 | 0.6 | 1.9 | bonding 2 |
| JK2020-0.45 | 2 | 4 | 10 | 0.45 | 2 | soldering | JK1919-0.6 | 1.9 | 1.9 | 7.9 | 0.6 | 1.9 | soldering |
| JK1616-0.45-1 | 1.6 | 14.2 | 30 | 0.45 | 1.6 | soldering | JK2040-0.6 | 4 | 1 | 6 | 0.6 | 2 | soldering |
| JK1614-0.45-2 | 1.4 | 5 | 11.4 | 0.45 | 1.6 | soldering | JK2040-0.6-1-JH | 4 | 1.5 | 10 | 0.6 | 2 |
bonding right end |
| JK2020-0.45-2 | 2 | 3 | 6.3 | 0.45 | 2 | soldering | JK2016-0.7 | 1.6 | 15.1 | 17 | 0.7 | 2 | soldering |
| JK1616-0.45-3 | 1.6 | 1.05 | 4.65 | 0.45 | 1.6 | soldering | JK2016-0.7A | 1.6 | 5 | 11.6 | 0.7 | 2 | soldering |
| JK2016-0.5 | 1.6 | 5.8 | 12 | 0.5 | 2 | soldering | JK2016-0.7B | 1.6 | 1.5 | 7.1 | 0.7 | 2 | soldering |
| JK1616-0.5 | 1.6 | 14.2 | 30 | 0.5 | 1.6 | soldering | JK2016-0.7C | 1.6 | 0.3 | 20 | 0.7 | 2 | soldering |
| JK1619-0.5 | 1.9 | 2 | 5.1 | 0.5 | 1.6 | soldering | JK2016-0.7D | 1.6 | 4 | 9.6 | 0.7 | 2 | soldering |
| JK2018-0.5 | 1.8 | 7.2 | 11.5 | 0.5 | 2 | soldering | JK2016-0.7E | 1.6 | 1.5 | 4.6 | 0.7 | 2 | soldering |
| JK2030-0.5 | 3 | 2 | 10 | 0.5 | 2 | soldering | JK1818-0.7 | 1.8 | 0.4 | 22.2 | 0.7 | 1.8 | soldering |
| JK2018-0.5A | 1.8 | 1.5 | 9.5 | 0.5 | 2 | soldering | JK2035-0.7 | 3.5 | 3 | 13 | 0.7 | 2 | soldering |
| JK1614-0.5A | 1.4 | 4 | 9 | 0.5 | 1.6 | soldering | JK2017-0.7 | 1.7 | 3 | 9.7 | 0.7 | 2 | soldering |
| JK1615-0.5-JH | 1.5 | 0.5 | 7 | 0.5 | 1.6 | bonding 2 | JK2016-0.7-1 | 1.6 | 1.5 | 7.6 | 0.7 | 2 | soldering |
| JK1619-0.5-1-JH | 1.9 | 3 | 8.7 | 0.5 | 1.6 | bonding 2 | JK2016-0.7-2 | 1.6 | 1.5 | 6.3 | 0.7 | 2 | bonding R |
| JK1619-0.5-2-JH | 1.9 | 4.6 | 10.3 | 0.5 | 1.6 | bonding 2 | JK2016-0.7F-JH | 1.6 | 5 | 9.1 | 0.7 | 2 | bonding L |
| JK2016-0.5-JH | 1.6 | 5.8 | 12 | 0.5 | 2 | bonding 2 | JK2035-0.7-1-JH | 3.5 | 3 | 22 | 0.7 | 2 | soldering |
| JK2016-0.7B-JH | 1.6 | 1.5 | 7.1 | 0.7 | 2 | bonding L | JK2015-0.8-JH | 1.5 | 3 | 6.5 | 0.8 | 2 | bonding 2 |
| JK2020-0.75 | 2 | 4 | 12 | 0.75 | 2 | soldering | JK2530-0.9 | 3 | 1.8 | 6.6 | 0.9 | 2.5 | soldering |
| JK2516-0.8 | 1.6 | 1.5 | 10 | 0.8 | 2.5 | soldering | JK2816-1.0 | 1.6 | 2 | 6.6 | 1 | 2.8 | soldering |
| JK2540-0.8 | 4 | 4 | 10 | 0.8 | 2.5 | soldering | JK2816-1.0-2-JH | 1.6 | 4.9 | 10.3 | 1 | 2.8 | bonding 2 |
| JK3218-0.8 | 1.8 | 20 | 51.8 | 0.8 | 3.2 | soldering | JK3218-1 | 1.8 | 15 | 27 | 1 | 3.2 | soldering |
| JK2518-0.8 | 1.8 | 5 | 12.8 | 0.8 | 2.5 | soldering | JK3015-1.3 | 1.5 | 3 | 10.5 | 1.3 | 3 | soldering |
| JK2015-0.8 | 1.5 | 3 | 6.5 | 0.8 | 2 | soldering | JK3015-1.3-1 | 1.5 | 6.1 | 10.2 | 1.3 | 3 | soldering |
| JK2015-0.8A | 1.5 | 3 | 10.5 | 0.8 | 2 | soldering | JK3430-1.4 | 3 | 4.5 | 10.5 | 1.4 | 3.4 | soldering |
| JK2520-0.8 | 2 | 4 | 14 | 0.8 | 2.5 | soldering | JK3916 | 1.6 | 2 | 6.6 | 2 | 3.9 | soldering |
|
B.2=bonding both end B.L.=bonding left end B.R.=bonding right end |
|||||||||||||
NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.
