SMA Male Stainless Steel RF Plug for CXN3449/MF503A Cable

The SMA RF coaxial connector stands out as an extremely compact and high-frequency suitable connector that conforms to the MIL-C-39012 specification. It is celebrated for its multiple benefits, which encompass a minimal size, expansive frequency range, exceptional mechanical and electrical functionality, and elevated dependability. Owing to its widespread usage in domains such as microwave communication and microwave measurement apparatuses, it has attained the status of the most frequently utilized RF coaxial connector. Our organization has crafted a series of these superior-performance connectors engineered to withstand frequencies up to 20GHz.

Product Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

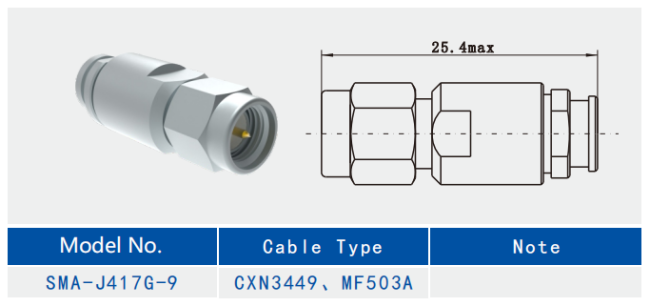

Outline Drawing of SMA Male Stainless Steel RF Plug for CXN3449/MF503A Cable:

Features/Benefits:

1. Compact Size: SMA connectors are extremely small, making them suitable for space-constrained applications.

2. Broad Bandwidth: SMA connectors can handle a wide range of frequencies, usually from DC (Direct Current) up to 18 GHz or higher.

3. Low Insertion Loss: Within their designed frequency bands, SMA connectors offer low insertion loss, helping to maintain signal integrity.

4. High Return Loss (Reflection Loss): This indicates that the connectors have good impedance matching, thereby reducing signal distortion and interference.

5. High Reliability: SMA connectors are designed to perform consistently under various harsh conditions, including vibration and extreme temperature changes.

Application:

1. Microwave Communication: In point-to-point and point-to-multipoint microwave transmission systems, SMA connectors are used to connect antenna systems to transceiver equipment.

2. Test and Measurement Equipment: SMA connectors are commonly found on RF test and measurement equipment such as network analyzers and signal generators because they maintain precise signal transmission at high frequencies.

3. Radar Systems: In weather radar systems, SMA connectors are used to transfer signals from the transmitter to the antenna.

4. Satellite and Space Communication: Due to their reliability and ability to withstand environmental conditions, SMA connectors are very common in spacecraft and ground station communication equipment.

NOTE:

We can supply over 1000 types of RF  connectors, if it is not match with your request,pls contact us.
