50Ohm Straight Solder SMP RF Connector Female Micro Coaxial Connector
50Ohm Straight Solder SMP RF Connector Female Micro Coaxial Connector
SMP is a ubminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits
| Gold plated |
| Sub-miniature |
| DC to 40 GHz |
| Compact size |
| Push-on or snap coupling |
| PCB & cable mount connector |
| Full detent, Limited detent and Smooth bore |
| Male and Female, Straight and Right Angle choice |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
Applications
- Military
- Antennas
- Aerospace
- Broadband
- Instrumentation
- Telecommunications
- Board-to-board interconnect
- Phased array antennas

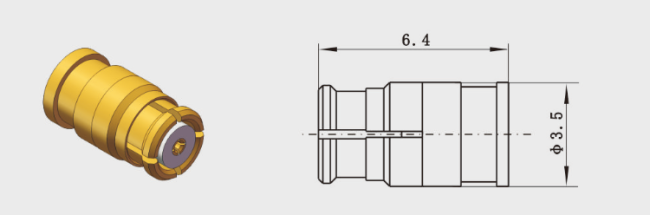

Detailed Drawing
Product Cataloge:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
