Corrosion Resistance SSMA Male Right Angle 90° RF Coaxial Connector for SFF-50-1 Cable

Corrosion Resistance SSMA Male Right Angle 90° RF Coaxial Connector for SFF-50-1 Cable

The SSMA Series RF coaxial connector is an even more compact rendition of the SMA connector, recognized for its diminutive size, extensive frequency range, and elevated reliability. This type of connector is widely deployed across various sectors, including aviation, aerospace, and microwave communications.

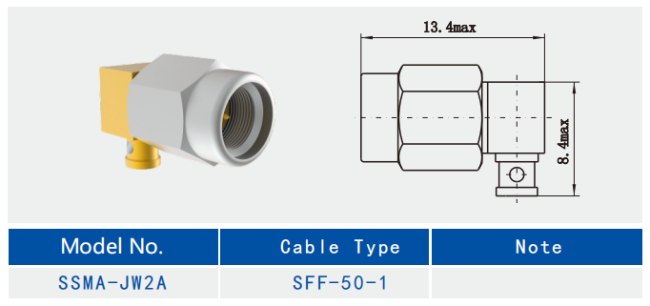

Product Drawing of Corrosion Resistance SSMA Male Right Angle 90° RF Coaxial Connector for SFF-50-1 Cable :

Electrical Characteristics

Note:The specific data of the model are based on the data in the product specification sheet.

Product Features:

1. Low VSWR (Voltage Standing Wave Ratio): SSMA connectors usually have very low VSWR values, indicating high transmission efficiency and minimal signal reflection.

2. Gender Types: Like other coaxial connectors, SSMA connectors come in male (plug) and female (receptacle) types.

3. Stable Connection: They include mechanisms such as threaded connections or push-on fittings to ensure firm and repeatable mating.

Application:

1. Measurement and Instrumentation: Network analyzers, spectrum analyzers, and other precision testing devices use SSMA connectors to minimize signal loss.

2. Medical Industry: In high-end diagnostic equipment like MRI (Magnetic Resonance Imaging) and CT (Computed Tomography) scanners, SSMA connectors are utilized.

3. Security Systems: In security surveillance systems, they are used to connect transmission cables for cameras and other monitoring devices.

Product Cataloge:

NOTE:

We can supply over 1000 types of  RF connectors, if it is not match with your request,pls contact us.
