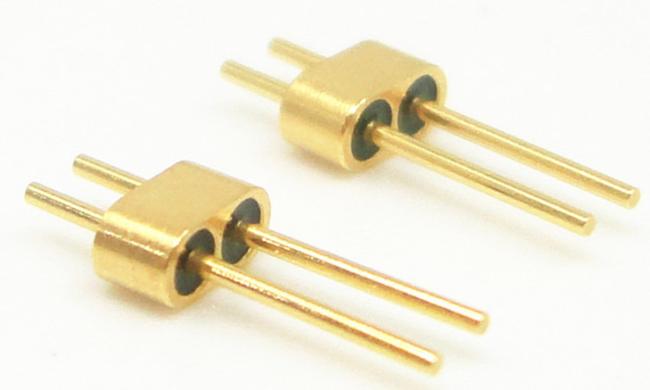

Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29 JMC-273
Multi-pin Headers Hermetic Glass To Metal Seal Connectors Kovar 4j29
Specification:
| Product Name | Multi-pin Headers |
| Impedance | other |
| Type | 2 pins |
| Rows | 1 row |
| Color | Gold plated |
| Body material | Kovar 4J29 |
|
Glass material
Glass Color
|
7050 or 7070 type
Green or White
|
| Freqecncy Range | NA |
| VSWR | NA |
| Withstand Voltage | ≥300V |
|
Hermecity Leak Rate |
< 1.01325 X 10-3 Pa*cm3/s < 1X 10-9 mbar*l/s < 1 x 10-9 ccHe/sec @ 1 atm |
| Insulation Resistance | ≥2000MΩ for single pin, ≥1000MΩ for multi-pin, |
| Operating Temperature | -65℃~+260℃ |
Multi-pin Headers is also called Glass insulator.They are one of the most critical components for seal assemblies. Dielectrics and supporting materials are made of glass with low dielectric constant and low dielectric loss.
Both inner conductor(pin/contact) and outer conductor(ferrule/outer ring) are made of Kovar alloy and sintered at high temperature. The surface is plated with gold. Inner conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, reliable and have been widespread in electronics manufacturing industries recent years.
Catalog-Glass-to-Metal Hermetic Seals.pdf
Features:
-Small size
-lightweight
-Hermetic
-Stable quality and high reliability
-Inner conductor: Gold wire bonding, soldering and mating method for choice
Application:
Wide application range of electronics packages, satellites, radar and other in avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.

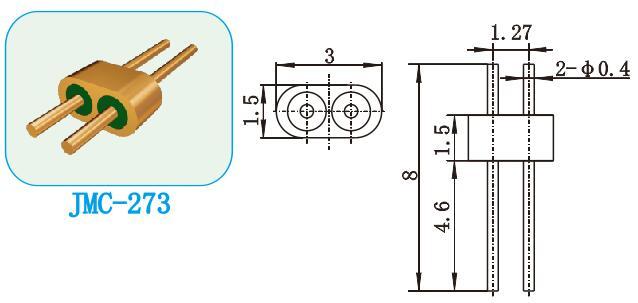

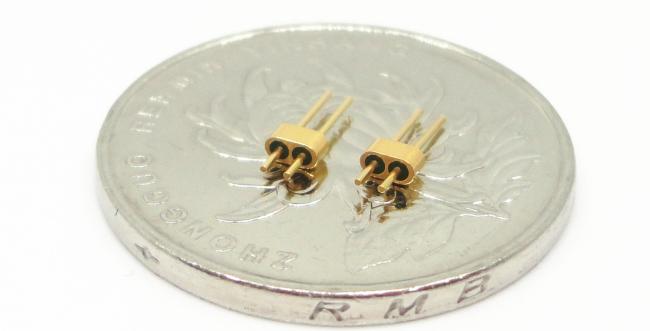

Detailed Image
Unit:mm

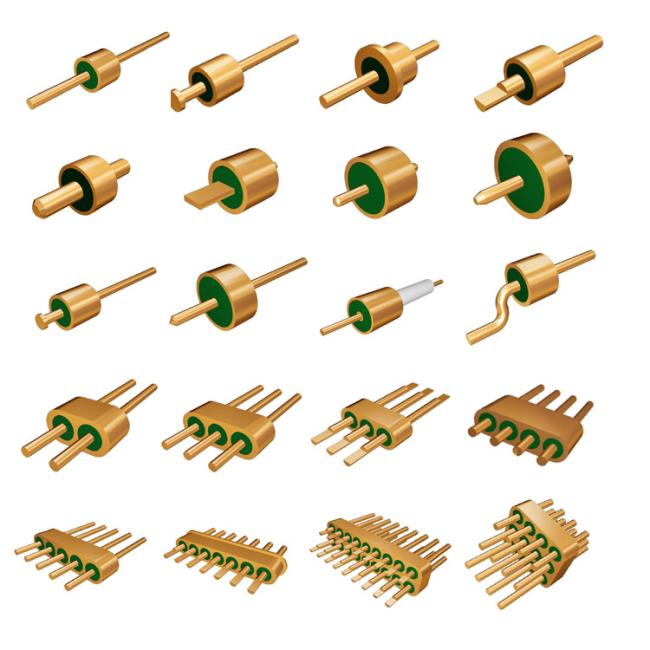

Product List:
| 50Ω RF Single-pin JM Series | Soldering Mating and Bonding choice |
| 50Ω RF Single-pin JM Standard Series | Soldering Mating and Bonding choice |
| 50Ω RF Single-pin JM Non-Standard Series | Soldering Mating and Bonding choice |
| DC Single-pin JK Series | Soldering and Bonding choice |
| DC Single-pin JK Standard Series | Soldering and Bonding choice |
| DC Single-pin JK Non-Standard Series | Soldering and Nail Head Bonding choice |
|
Multi-pin Header JMC Series
|
1-9 pins with 1-3 rows choice |
| Custom dimensions |
Wide range |
NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.
