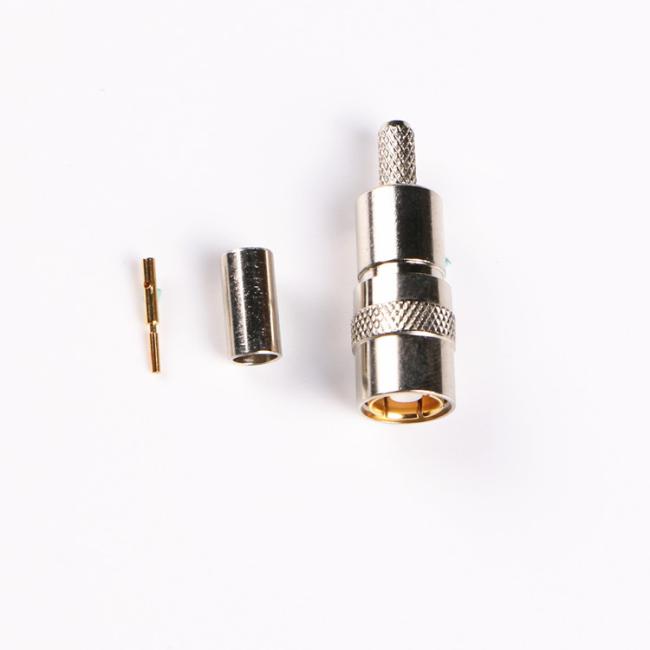

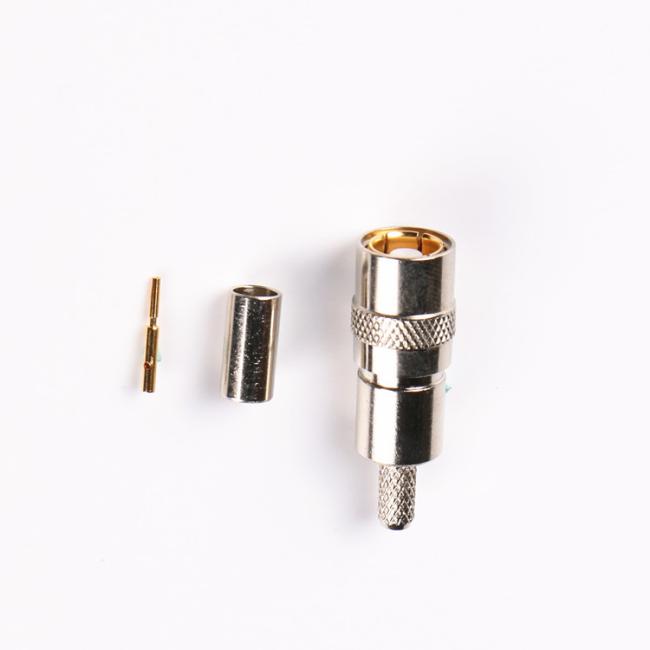

High Quality 50Ohm SMB Male Plug Straight Crimp RF Coaxial Connector with Nickel Plated
High Quality 50Ohm SMB Male Plug Straight Crimp RF Coaxial Connector with Nickel Plated
SMB series is a kind of a miniature push-on insertion stop RF coaxial connector, With characteristics of small volume, light weight, excellent easy use and high reliability etc, suitable for radio equipment and high-frequency circuits of electronic equipment. They use a snap-on mating to reduce installation time. Various plating options In nickel, gold, and tin lead. Selective plating provides corrosion resistance finish and good solder ability characteristics.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ohm | |
| Frequency Range | DC~4GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MOhm | |
| Contact Resistance | Outer conductor | ≤6mOhm |
| Center conductor | ≤1.5 mOhm | |
| VSMR | ≤1.3 | |
| Insertion Loss | ≤0.30dB | |
Product Detail
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
- Low cost combined with high quality.
- Broadband performance with low reflection from DC to 18GHz.
- 50Ohm impedance
- Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
- BNC connectors are available in straight or right angle versions as well as, bulkhead, 2 holes panel, 4 holes panel or mountless options.
- Available for affixement to industry standard cable and as a printed circuit board device
- Provide repeatable performance
Application:
* Broadband
* Instrumentation
* Antennas
* Telecom
* Computers
* Broadcast
* Video systems
* Automotive
* Telecommunications
* Wireless industries
* Measurement equipment
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
