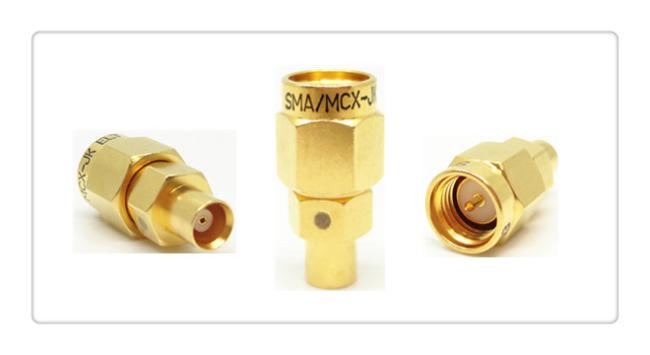

Gold Plated 6GHz SMA Male to MCX Female RF Coaxial Adapter Connector
Gold Plated SMA Male to MCX Female RF Coaxial Adapter Connector
MCX RF coaxial connector is apply to the equipment which have the requirement of weight and volume, the operation frequency can reach 6GHz, use plug-in design, the interface size is similar with SMB, but the volume is approximately 30% smaller, contact is more reliable, connect is faster, which can meet the requirement of digital communication intensively and miniaturized.
SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.

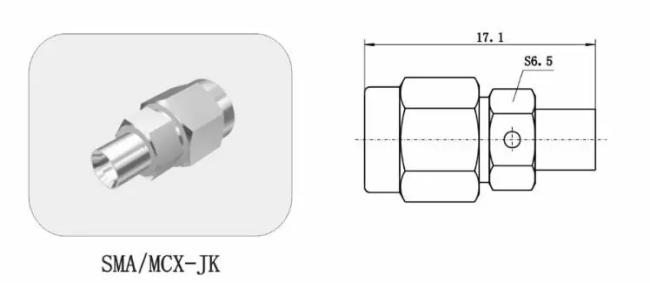

Outline Drawing and Picture(mm)
Other SMA to MCX Male to Female Adapter:
1.
| Mode No. | Description |

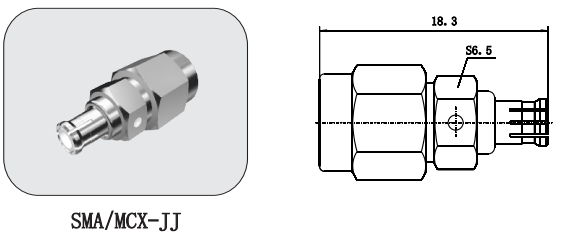

| SMA/MCX-JJ | SMA male to MCX male adapter |
2.
| Model No. | Description |

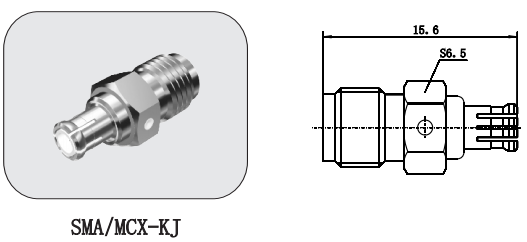

| SMA/MCX-KJ | SMA female to MCX male adapter |
3.
| Model No. | Description |

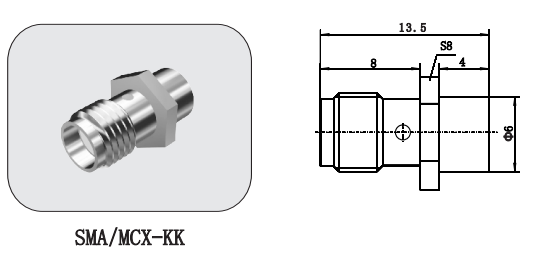

| SMA/MCX-KK | SMA female to SMA female adapter |
4.
| Model No. | Description |

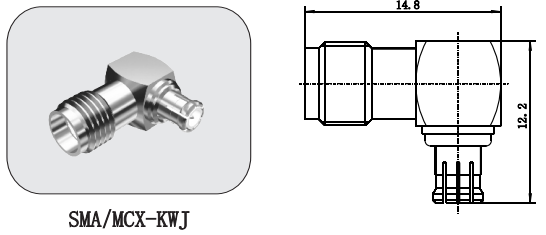

| SMA/MCX-KWJ | SMA female to MCX male right angle adapter |
5.
| Model No. | Description |

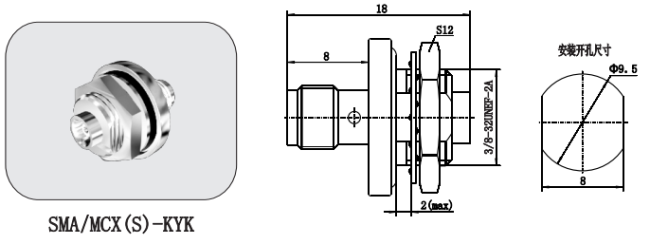

| SMA/MCX(S)-KYK | SMA female to MCX female bulkhead adapter with seal ring |
Application:
* Network
* Satcom
* Computer/LANs
* Mobile communication
* Base Station
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Radio, TV aerial system
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
