MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance
MMCX Male Right Angle to MMCX Male RF Cable Assembly EF316D
This mmcx cable Assembly is combine with our company self-made precision connector connect HUBER+SUHNER flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.
Specifiacation:
| Electrical Characteristics | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | 0~3GHz | |
| VSWR | ≤1.2 | |
| Dielectric Withstanding Voltage | ≥1500VRMS,50Hz, at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center conductor | ≤3mΩ |
| Outer conductor | ≤2.5mΩ | |
| Material & Mechanical Characteristics | ||
| Body | Brass Ni Plated | |
| Insulator | PTFE | |
| Center conductor | Phosphor Bronze Au Plated | |
| Durability | Mating cycles ≥500 | |
| Temperature Range | -40-+165℃ | |
| Suitable for cable | RG316 | |
Application:
* Base Station
* Computer/LANs
* Instrumentation
* Outdoor facilities
* Radar,microwave
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Mobile communication
* Microwave RF device
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality

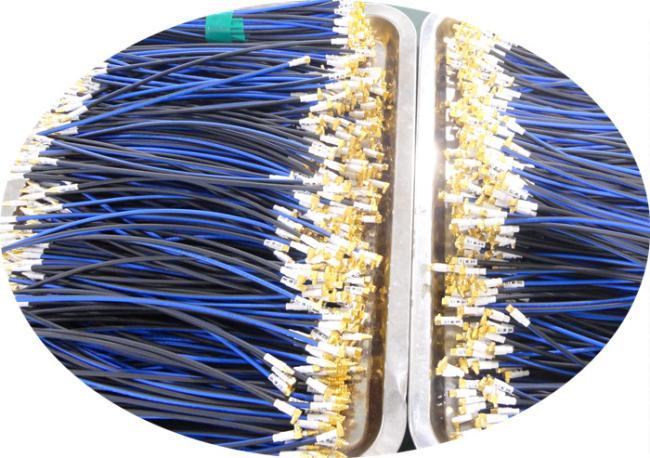

Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| TNC RF Connector |
| J30J Series Connector |
| Microwave Rotary Joints |
| N Type RF Connector |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| BNC RF ConnectorMillimeter |
Packaging & Delivery:
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
