Mini Size Brass Male SMA RF Connector For LMR200 MF147B CXN3449 Cable
Mini Size Brass Male SMA RF Connector For LMR200 MF147B CXN3449 Cable
- SMA series is a kind of mini, high-frequency RF coaxial connector.
- It's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics.
- SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.
- The high performance connector developed by our company can reach to 20GHz.
Specification of SMA RF Connectors:
Note:The specific data of the model are based on the data in the product specification sheet.| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | Connect with LMR200 Cable up to 6GHz | ||
| Connect with MF147, CXN3499 Cable up to18GHz | |||
| Rated Voltage | 335VRMS* | ||
| Dielectrics Voltage-resistance | 1000VRMS* | ||
| Insulation Resistance | ≥5000MΩ | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Copper Alloy, Gold plated | |
| Female | Copper Alloy, Gold plated | ||
| Shell and other Metal Parts | Brass Nickel plated | ||
| Stainless Steel Passivation | |||
| Crimping Sleeve | Brass Nickel Plated | ||
| Durability | 500 Cycles | ||
| Sealing Ring | Silicone Rubber | ||
| Insulators | PTFE | ||
Advantages:
1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz
4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead, or 4 holes panel configurations

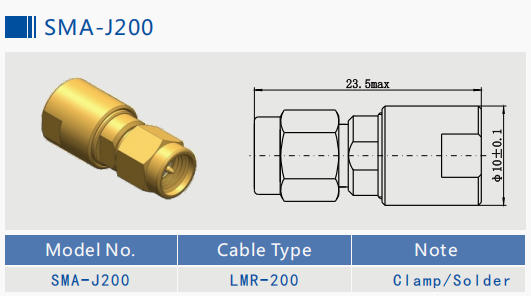

Outline Dimension of SMA Male RF Coax Cable Connectors: SMA-J200 up to 6GHz
Related Stainless Steel Models:
Outline Dimension of SMA Male RF Coax Cable Connectors:
| Model No. | Description | Length(mm) | Cable Type |

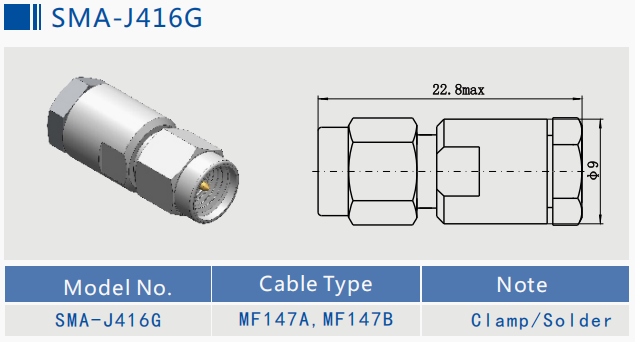

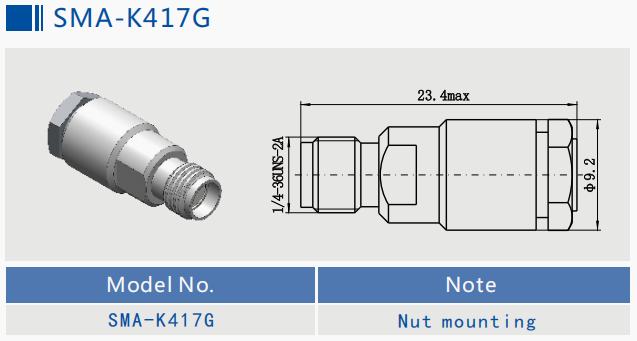

| SMA-J416G | Stainless steel SMA male connector for MF147 cable up to 18 GHz | 22.8 | MF147B |
| SMA-J417G | Stainless steel SMA male connector for CXN3499 cable up to 18GHz | 23.4 | CXN3499 |
Application:
*Network
*Radar
*Automotive
*Satcom
*Computer/LANs
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Board-to-board interconnect
Packaging Details:
* Standard Export Carton
* Labels According to your requirements
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
