BNC Male to SMA Male Straight RF Adapter for Base Station/Outdoor Facilities

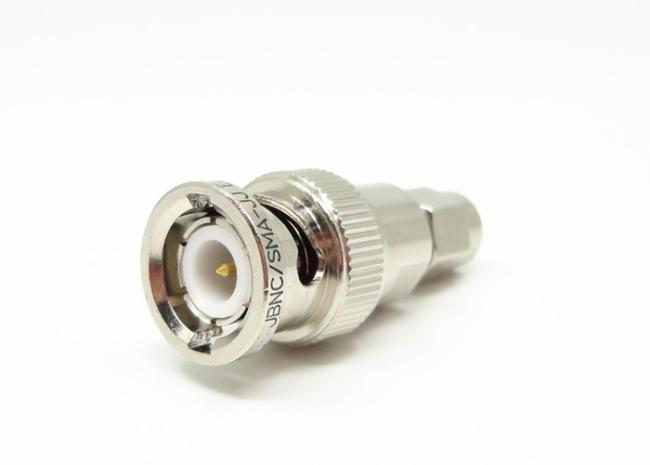

Nickel Plated BNC Male to SMA Male Straight RF Adapter Connector

TYPE SMA is a kind of RF coaxial connectors that is widely applied, with small sized thread coupling. Characteristic impedance is 50Ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316). They are used with radio, television, and other radio-frequency electronic equipment, test instruments, video signals, and was once a popular connector for 10BASE2 computer networks.

Specifiacation:

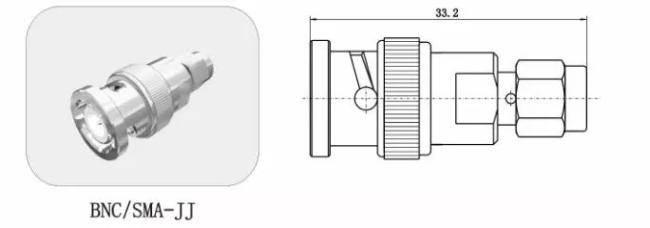

Detailed Drawing

Application:

Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system

Product Cataloge:

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
