SMA Female To SMP Female Rf Connector Adapter Gold Plated Small Size CE / ROHS

Hot Sale Gold Plated SMA Female to SMP Female RF Coaxial Connector Adaptor

TYPE SMA is one kind of RF coaxial connectors that is widely applied, with small sized thread coupling. Characteristic impedance is 50ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

SMP is a miniature push-on RF coaxial connector, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc.Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz),and the plug has three interface form with full detent, limited detent and smooth bore(including with braking).
Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connectors. Apply for the install situation with the requirement of high reliability modular intensive.

Specifiacation:

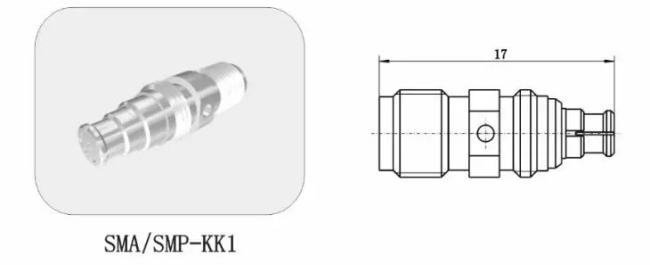

Detailed Drawing

Application:

- Wireless
- Antennas
- Aerospace

- Broadband

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

Product Cataloge:

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
