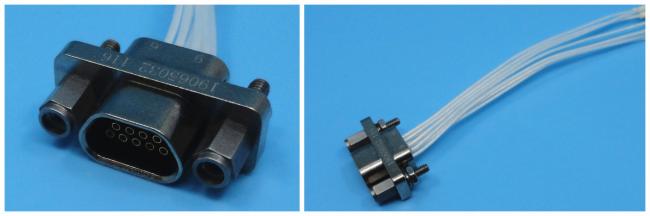

Aluminum Alloy J30j Series Connector Receptacle 9 Pins Connector 100mm Wire Length
Micro-D Rectangular J30J Series Receptacle 9 Pins Connector 100mm 0.1 - 0.15mm² Cable
J30J series products equate to American MDM series, and the number of contacts including : 9, 15, 21, 25, 31, 37, 51, 66, 100. Using twisted wire elastic pins (twist pins) with high contact density, Suitable for wire core cross-sectional area of 0.1mm² to 0.15mm².
Out Shell: Aluminum Alloy.
Contact Spacing: 0.05'' / 1.27mm.
Specification:
| Voltage Rating | 300V |
| Current Rating | 3A |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 800V |
| Durability | 500 cycles |
| Environmental Temperature | -55℃ ~ + 125℃ |
| Relative Humidity | up to 95% at +40℃ |
| Vibration | 10Hz~ 2000Hz 196m/S² |
| Total acceleration RMS | 23.1G |
| Impact | 735m/S² |
|
Contact Arrangements (Face View of Pin insert) |
| Outer Dimension Drawing(Unit:mm) |
| Model No. | A | B | C |
| J30J-9ZK | 19.6 | 14.35 | 7.6 |
| J30J-15ZK | 23.5 | 18.2 | 7.6 |
| J30J-21ZK | 27.4 | 22 | 7.6 |
| J30J-25ZK | 29.8 | 24.5 | 7.6 |
| J30J-27ZK | 33.6 | 28.3 | 7.6 |
| J30J-33ZK | 37.4 | 32.2 | 7.6 |
| J30J-51ZK | 36.3 | 30.86 | 8.7 |
| J30J-100ZK | 54.8 | 45.72 | 9.7 |
J30J Series Features:
Applications:
* Avionics, radars
* Telecommunication systems
* Navigation systems
* Research centres
* GPS
* UAV
* Communications
* Satcom
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We can supply over 1000 types of Miro-D J30J Series connectors, if it is not match with your request,pls contact us.
