Right Angle Glass To Metal Seal Feedthrough Gold Wire Bonding Single Pin JMC-925-JH
Nail Head Right Angle Gold Wire Bonding Glass To Metal Seal Feedthroughs
Glass Beads/ Hermetic Glass to Metal Seals RF/DC Feedthroughs is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.
Catalog-Glass-to-Metal Hermetic Seals.pdf
The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc.
Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.
Specification:
| Product Name | Hermetic Glass to Metal Seals |
| Model No. | JMC-925-JH |
| Impedance | Other |
| Type | 1 pin |
| Rows | 1 row |
| Color | Gold plated |
| Housing and pin material | Kovar 4J29 |
|
Glass material
Glass Color
|
7050 or 7070 type or DM308
Green or White
|
| Freqecncy Range | NA |
| VSWR | NA |
| Withstand Voltage | ≥300V |
|
Hermecity Leak Rate |
< 1.01325 X 10-3 Pa*cm3/s < 1X 10-9 mbar*l/s < 1 x 10-9 ccHe/sec @ 1 atm |
| Insulation Resistance | ≥2000MΩ |
| Operating temperature | -65℃~+260℃ |

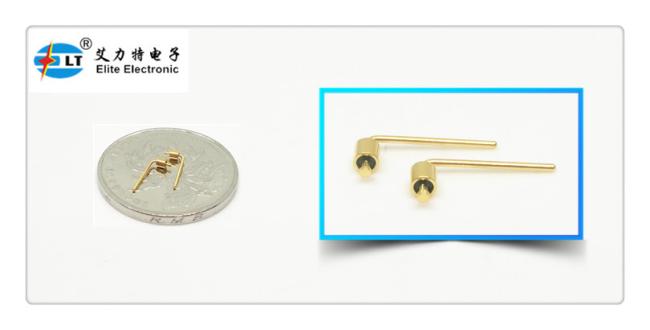

Product Image:
Features:
- Small size
- Hermetic
- lightweight
- Stable quality and high reliability
- Inner conductor: Gold wire bonding, soldering and mating method for choice
Application:
Wide application range of electronics packages, satellites, radar and other in avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.
