Stainless Steel RF Connector Adapter K Female to SMP Female Straight Type

K(2.92mm) Female to SMP Female Straight RF (MMW)Millimeter Wave Connectors Adapter


The high precision 50Ohm coaxial SMP to K type 2.92mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

Specification:

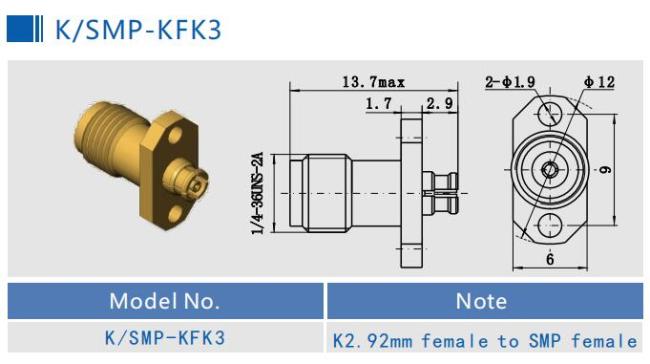

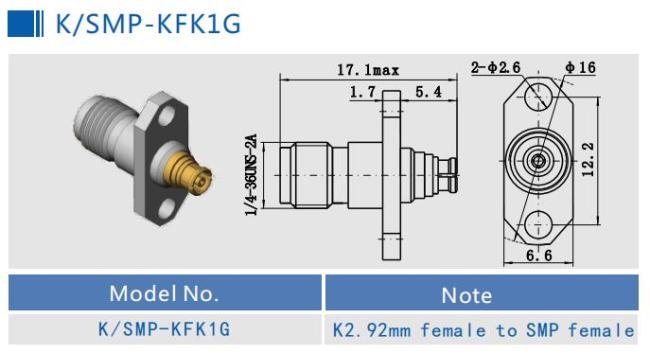

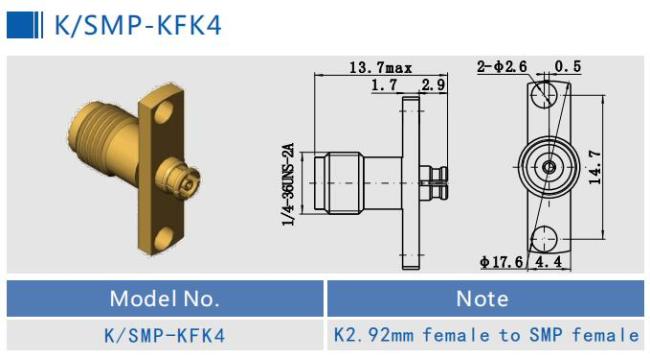

Product Drawing:


Features:



• The SMP to K(2.92mm) adaptor is a high frenquency microwave connectors.

• Stainless steel construction with nickel/gold plated

• Superior electrical performance to 40GHz can widly use in different files.

• Connectors in End Launch and Flange options

• Adapters to 2.4mm, SMP, 2.92mm, SMA.

• Connector mating interface per MIL-STD-348

• Great for applications that require high frequency transmission

• Excellent reliability where extreme shock & vibration conditions are experienced

• Quick connect cable plugs and adapter


Application:


* Avionics, radars
* Navigation systems
* Missiles and guidance systems

* Research centres
* Satellite communications
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications

NOTE:

We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us with your details.
