Lightweight 50 Ohm Straight RF Adapter Female BNC To SMA Coaxial Adapter
Price:
Negotiable
MOQ:
100 pcs
Delivery Time:
Within 3 weeks
Brand:
ELT
Product Description
50 Ohm Straight RF Adapter BNC To SMA Coaxial Adapter
Specifiacation:
| Impedance | 50Ω |
| Freqency Range | DC to 3GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |

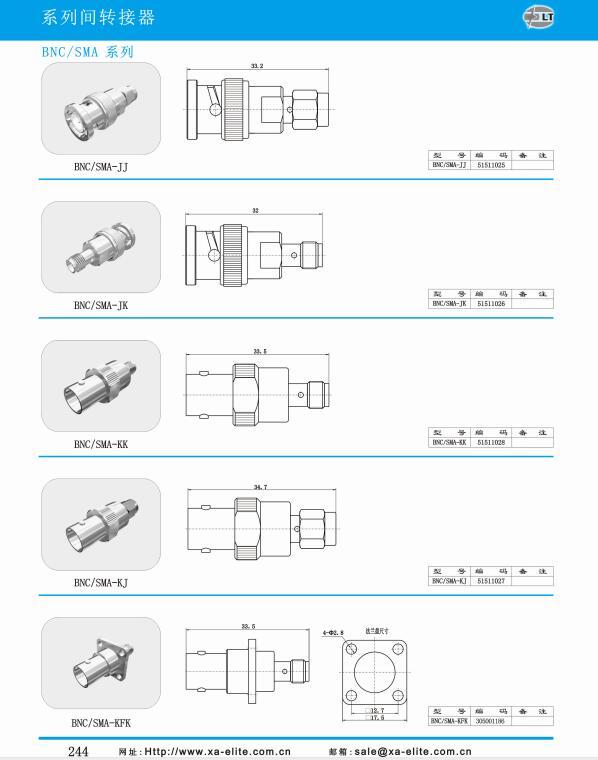

Detailed Images:
Unit: mm
| Model No. | Description |
| BNC/SMA-JJ | BNC male to SMA male |
| BNC/SMA-JK | BNC male to SMA female |
| BNC/SMA-KK | BNC female to SMA female |
| BNC/SMA-KJ | BNC female to SMA male |
| BNC/SMA-KFK | BNC female to SMA female with four holes flange mount |
Between Series Adapter list:
| Types | Description |
| SMA/SSMA | SMA male/female to SSMA male/female adapter |
| SMA/SMP | SMA male/female to SMP male/female adapter |
| RPSMA/SMA | RP SMA male/female to SMA male/female adapter |
| SMA/BMA | SMA male/female to BMA male/female adapter |
| BNC/SMA | BNC male/female to SMA male/female adapter |
| SMA/SMB | SMA male/female to SMB male/female adapter |
| N/SMA | N type male/female to SMA male/female adapter |
| TNC/SMA | TNC male/female to SMA male/female adapter |
| N/BNC | N Type male/female to BNC male/female adapter |
| SMA/SSMC | SMA male/female to SSMC male/female adapter |
| N/3.5 | N Type male/female to 3.5mm male/female adapter |
| SMA/MCX | SMA male/female to MCX male/female adapter |
| ODM | ODM type is available |
Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(Micro D-sub,MDM)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. ODM Products
Packaging Details:
* Standard Export Carton
* According to clients' requirements
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
