Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector
Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector
1. SMA RF connectors are available in quick connect, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing 2 connectors together with no soldering or crimping required.
3. SMA RF connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling with miniature size, vibration-proof and wide frequency range up to 18GHz .
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Application:
* Broadband
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |

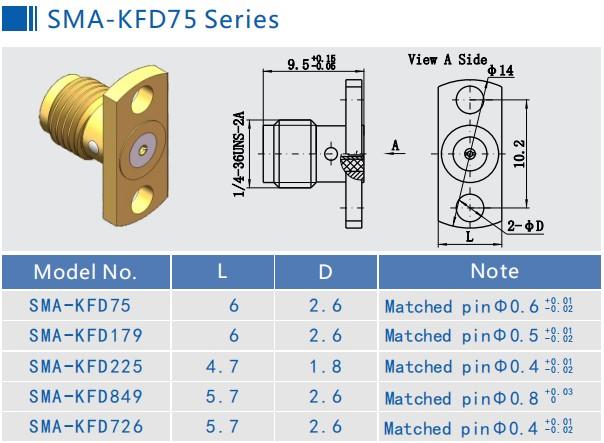

More Detail of Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector:
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
