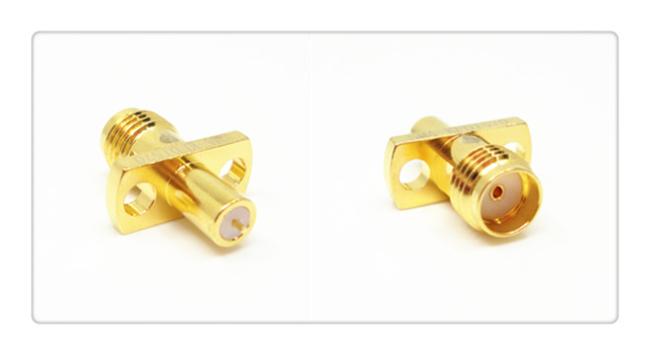

SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
SMA RF Connector 2 Holes Flange Mount Female 500 Cycles Durability
1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions, as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Application:
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
Other Products:
1.SMA Female Right Angle PCB Panel Solder Mount RF Coaxial Connector
| Model No. | L | L1 | Note |
| SMA-KWHD | 13.5 | 3.9 | |
| SMA-KWHD9 | 11.5 | 1.9 | |
| SMA-KWHD11 | 15.6 | 6 |

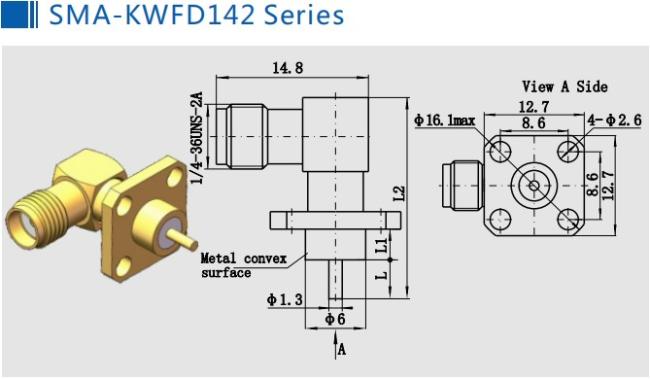

2. 2-Holes Flanges Mount SMA Female Right Angle SMA Connector
| Model No. | L | L1 | L2 | Note |
| SMA-KWF142 | 4 | 3.4 | 20.3 | |
| SMA-KWFD146 | 1.2 | 3 | 17.1 |
