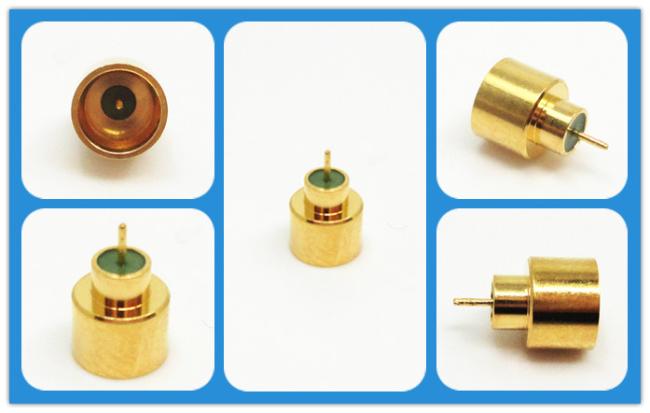

SMP Male Pin Length 1.8mm Hermetically Sealed Connector for PCB Board
SMP Male Limited Detent Hermetically Sealed Connector Solder Attachment Pin Terminal
SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz), and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Center Resistance | Outer conductor | ≤4mΩ |
| Center conductor | ≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |

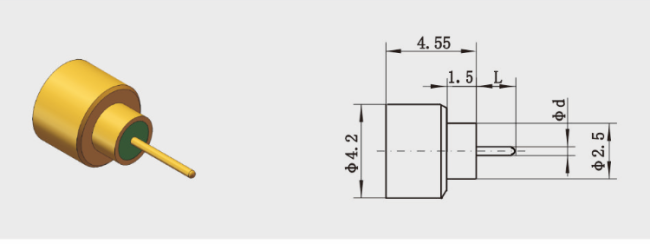

Detailed Drawing
| Model No. | L | d | Interface | Note |
| SMP(M)-JHD1 | 1.8 | 0.39 | limited detent | interface deepth 2.79mm, hermetic |
| SMP(M)-JHD1-S | 1.8 | 0.39 | smooth bore | interface deepth 2.79mm, hermetic |
| SMP(M)-JHD1-F | 1.8 | 0.39 | full detent | interface deepth 2.79mm, hermetic |
| SMP(M)-JHD6 | 0.95 | 0.3 | limited detent |
interface deepth 2.79mm, hermetic |
| SMP(M)-JHD6-F | 0.95 | 0.3 | full detent | interface deepth 2.79mm, hermetic |
| SMP(M)-JHD32 | 15 | 0.39 | limited detent | interface deepth 2.79mm, hermetic |
| SMP(M)-JHD59 | 1.1 | 0.39 | limited detent | interface deepth 2.79mm, hermetic |
| SMP(M)-JHD73-S | 8.4 | 0.6 | smooth bore | interface deepth 2.79mm, hermetic |
| SMP(M)-JHD136 | 3 | 0.39 | limited detent | interface deepth 2.79mm, hermetic |
Applications
- Antennas
- Broadband
- Telecommunications
- Instrumentation
- Phased array antennas
- Board-to-board interconnect
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available
