Microwave 18GHz Flange Mount SMA RF Coaxial Connector
SMA Microstrip Series Gold Plated Flange Mount RF Coaxial Connector
SMA RF coaxial connector is a small, high frequency coaxial connector. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.
Specifiacation:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
Key Features:
1. Frequency range up to 18GHz Sub-miniature coaxial connectors
2. Using a threaded interface
3. Available in passivation or gold plating
4. Brass and stainless steel material options
5. Wide variety of orientations and PCB terminations
6. Available in straight or right angle versions
7. With bulkhead, 2 holes panel, 4 holes panel or mountless options.
8. Broad range with male, female and adapters variants.
9. RoHS compliant
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
More Detail:

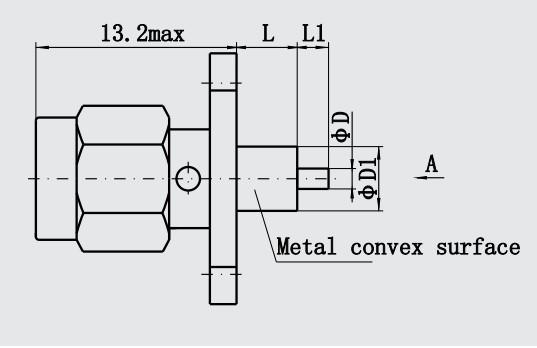

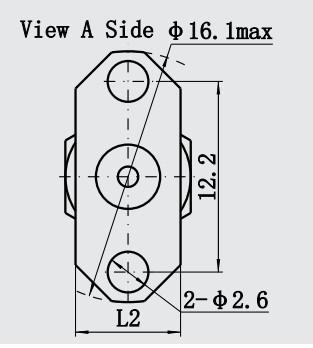

| Model No. | L | L1 | L2 | D | D1 |
| SMA-JFD2 | 3 | 2 | 6.7 | 0.5 | 6.1 |
| SMA-JFD10 | 3 | 3 | 6.7 | 0.8 | 4.1 |
| SMA-JFD121 | 4 | 2 | 6.7 | 0.8 | 4.1 |
| SMA-JFD149 | 3 | 2 | 6.7 | 0.5 | 4.1 |
| SMA-JFD158 | 4 | 1.5 | 6.7 | 0.6 | 4 |
| SMA-JFD87G | 4 | 2.5 | 6.7 | 0.7 | 4 |
| SMA-JFD115 | 4 | 2 | 6.7 | 0.5 | 4.1 |
| SMA-JFD193G | 4 | 2.5 | 6.7 | 0.5 | 4 |
| SMA-JFD198 | 2 | 2 | 6.7 | 0.5 | 4 |
Application:
* Aerospace
* Broadband
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
Similar Products:
1.Male Flange Mount SMA connectors
| Model No. | L | L1 | L2 | D | D1 | D2 |
| SMA-JFD152 | 19.9max | 4 | 1.5 | 0.8 | 4.1 | 2.2 |
| SMA-JFD154 | 18.9max | 3 | 1 | 0.5 | 4 | 2.6 |
| SMA-JFD157 | 22.2max | 3 | 2 | 0.5 | 4 | 2.2 |
| SMA-JFD189 | 19.9max | 4 | 1.5 | 0.5*0.2 | 4 | 2.2 |

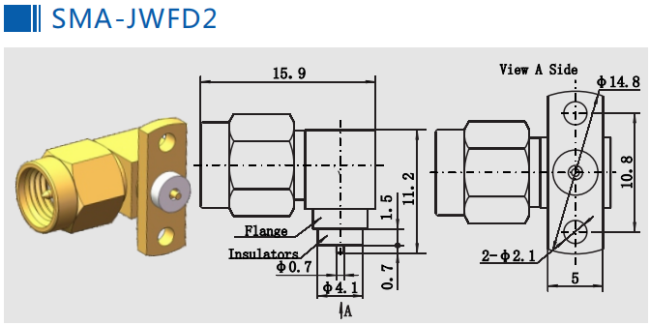

2.Male Right Angle SMA Connectors

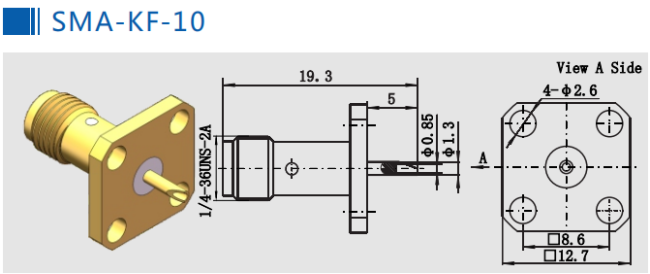

3.Female Flange Mount SMA RF Connectors
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
